Product Information

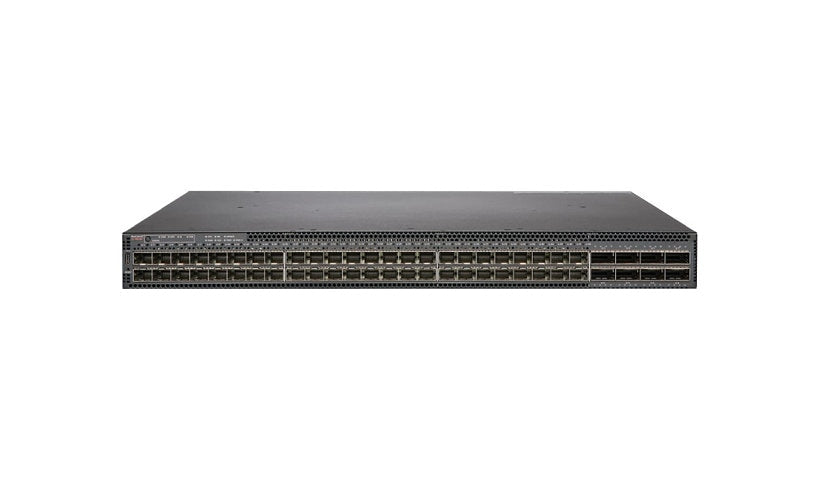

Ruckus' ICX7850-48F-E2 is a stackable Layer 3 aggregation and core switch with 48 1/10/25G SFP28 ports and eight 40/100G QSFP28 ports. It offers 4 Tbps of switching capacity and 2 Bpps forwarding, with two hot-plug power supplies installed and front to back airflow.
Key Features
- 48 x 1/10/25G SFP28 ports
- 8 x 40/100G QSFP28 ports
- 4 Tbps switching, 2 Bpps
- Stackable, 9.6 Tbps stacking bandwidth
- 2 hot-plug power supplies installed
- Front to back airflow
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 7850-48F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol: ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-1, RIP-2, RIPng, Static IP routing, VRRP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Aggregate stacking bandwidth: 9.6 Tbps, Forwarding capacity: 2 Bpps, Switching capacity: 4 Tbps
Capacity: Latency: 0.8 μs, Layer 2 multicast groups: 8192, Layer 3 multicast groups: 8192, Maximum ports per trunk: 16, Priority QoS queues: 10, PVLANs supported: 256, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 64
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: 5 fans, 802.1x authentication, Access Control List (ACL) support, BOOTP support, DHCP server, DHCP snooping, DHCP support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Flow control, Full duplex capability, IGMP proxy, In-Service Software Upgrade (ISSU), IPv4 support, IPv6 support, Jumbo Frames support, Link Aggregation, Link Aggregation Control Protocol (LACP), LLDP support, MAC address authentication, MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MRP-II support, Multi-Chassis Trunking (MCT), Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), Port mirroring, Protected ports, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Secure Copy (SCP), sFlow, SmartZone, SNMP support, Strict Priority (SP), Syslog support, Tagged VLAN, Telnet client, Telnet server, Trivial File Transfer Protocol (TFTP) support, Trusted Platform Module (TPM), Type of Service (ToS), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, VLAN Tagging, Weighted Round Robin (WRR) queuing
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1/10/25 Gigabit SFP28
Ports (2nd) Quantity: 8
Ports Type (2nd): 40 Gigabit / 100 Gigabit QSFP28
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45 management, 48 x 1/10/25Gbit LAN SFP28, 8 x 100Gbit/40Gbit LAN QSFP28
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 650 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 104 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 457,244 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 17.5 inch
Weight: 19.4 lbs
Certifications and Listing
Compliant Standards: AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55022, EN55024, FCC Part 15 A, ICES-003, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, IEC60950-1, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
