Product Information

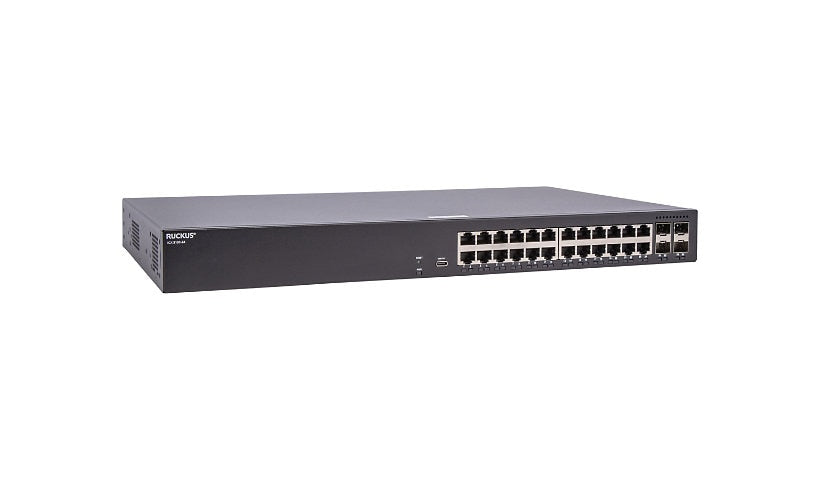

Ruckus' ICX8100-24 is a managed access switch with 24 Gigabit RJ-45 ports and four Gigabit SFP ports. It offers 128 Gbps of switching capacity with 802.1x, DHCP snooping and DoS protection, and has one power supply installed and front and side to back airflow.
Key Features
- 24 x 10/100/1000 RJ-45 ports
- 4 x Gigabit SFP ports
- 128 Gbps switching, 96 Mpps
- 802.1x, AAA, DoS protection
- 1 power supply installed
- Front and side to back airflow
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 8100
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: Asia, Australia, EMEA, Latin America, New Zealand, North America
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: BOOTP, CLI, DHCP, HTTP, HTTPS, NTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, PIM-SM, PIM-SMv6
Authentication Method: RADIUS, RADSEC, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Forwarding capacity: 96 Mpps, Switching capacity: 128 Gbps
Capacity: ARP entries: 8192, IGMP multicast groups: 4096, Link aggregation groups: 128, Maximum member ports per LAG: 8, Maximum number of VLANs: 4095, MLD multicast groups: 512, Packet buffer size: 4 MB, PVLANs supported: 32, QoS priority queues per port: 8, STP instances: 254
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Features: 802.1x authentication, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS) protection, DHCP relay, DHCP server, DHCP snooping, Double VLAN mode, DSCP/ToS mapping, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Energy-Efficient Ethernet (EEE), Fanless, Flexible authentication, High Availability, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, Inter-Packet Gap (IPG) adjustment, IPv6 Neighbor Discovery Inspection, Layer 2 switching, Link Fault Signaling (LFS), MAC address authentication, MAC address blocking, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, Syslog support, Traffic management, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), VLAN mapping, Web authentication
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x console USB Type-C, 24 x 10/100/1000 Base-T RJ-45, 4 x Gigabit LAN SFP
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 550 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: 104 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 2,046,035 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 11 inch
Weight: 7.94 lbs
Certifications and Listing
Compliant Standards: BSMI CNS 15663, CAN/CSA-C22.2 No. 62368-1, China RoHS, China RoHS SJ/T 11363-2006, China RoHS SJ/T 11364-2006, CNS 15598-1, CNS 15936-1 Class A, Directive 1907/2006/EC, Directive 2006/66/EC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 30/2011/TT-BCT, Directive 94/62/EC, EN 300 386, EN 55032 Class A, EN 55035, EN 60825, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN55024, EU REACH, FCC Part 15 B Class A, ICES-003 Class A, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, KN32 Class A, KN35 Class A, RoHS, RoHS 2011/65/EU, TCVN 7189 Class A, TCVN 7317, UK RoHS, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
Compliant Standards: IEEE 802.1 AVB, IEEE 802.1ab (LLDP), IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
