Product Information

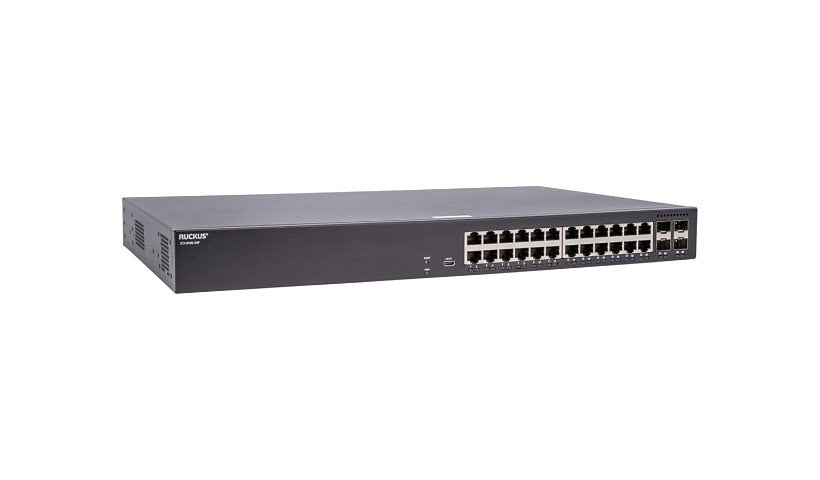

Ruckus' ICX8100-24P is a stackable managed switch with 24 Gigabit PoE+ ports and four Gigabit SFP ports. It shares a 370 W PoE budget and offers 128 Gbps of switching capacity, with one power supply installed and front and side to back airflow.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 4 x Gigabit SFP ports
- 370 W PoE budget
- 128 Gbps switching, 96 Mpps
- Stackable
- 1 power supply installed
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 8100
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Manageable: Yes
Remote Management: BOOTP, CLI, DHCP, HTTP, HTTPS, NTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Forwarding performance: 96 Mpps, Switching capacity (full duplex): 128 Gbps
Capacity: ARP entries: 8192, Maximum number of VLANs: 4095, PVLANs supported: 32, STP instances: 254
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: ARP support, BOOTP support, DHCP support, Flow control, MAC address filtering, Metro Ring Protocol (MRP) support, PIM snooping, Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, VLAN support, Weighted Round Robin (WRR) queuing
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit SFP
Interface Provided: 1 x serial RJ-45, 1 x USB Type C console management, 24 x 10/100/1000 Base-T (PoE+) RJ-45, 4 x Gigabit SFP SFP
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 550 watt
PoE Budget: 370 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 741,863 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 11 inch
Weight: 9.48 lbs
Certifications and Listing
Compliant Standards: 2006/66/EG, 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, BSMI CNS 15936, CAN/CSA-C22.2 No. 62368-1, CNS 15598-1, CNS 15663, Directive 1907/2006/EC, Directive 30/2011/TT-BCT, EN 300 386, EN 55032, EN 55032 Class A, EN 55035 Class A, EN 60825, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 Subpart B, ICES-003 Class A, IEC 60950-1, IEC 62368-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, KCC KN32 Class A, KN35 Class A, REACH, SJ/T 11363-2006, SJ/T 11364-2006, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
Compliant Standards: IEEE 802.3at, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
