Product Information

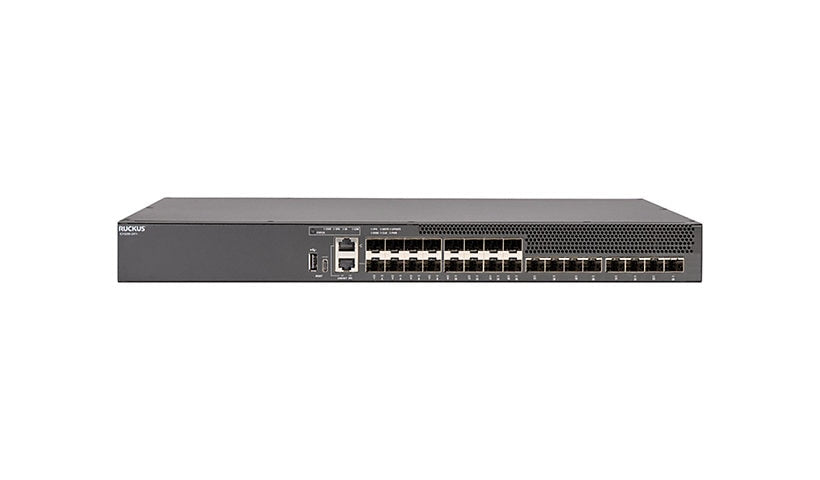

The Ruckus CommScope ICX 8200-24FX is a 1U managed Layer 3 switch, not a network adapter. It has twenty four 1/10G SFP+ ports and eight 25G SFP28 ports for uplinks or stacking, and up to 12 units can be stacked. It offers 720 Gbps switching capacity, 1.2 Tbps stacking bandwidth, VXLAN, VRF, OSPF, VRRP, OpenFlow and sFlow, 4 GB of RAM and 8 GB of flash. It has one AC power supply and front and side to back airflow.
Key Features
- Switch, not a network adapter
- 24 x 1/10G SFP+ ports
- 8 x 25G SFP28 uplinks
- Stack up to 12 units
- 720 Gbps switching
- 1U, Layer 3 features
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 8200-24FX
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: Asia, Australia, EMEA, Latin America, New Zealand, North America
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet / 10 Gigabit Ethernet / 25 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol: GRE, OSPF, RIP, Static IPv4 routing, VRRP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Aggregate bandwidth: 1200 Gbps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 720 Gbps
Capacity: Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: OpenFlow support, sFlow, Virtual Routing and Forwarding (VRF), VxLAN tunneling
Max Units In A Stack: 12
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports (2nd) Quantity: 8
Ports Type (2nd): 25 GbE SFP28 (stacking / uplink)
Interface Provided: 1 x USB Type A management, 1 x USB Type C console management, 2 x 1000Base-T RJ-45 management, 24 x Gigabit / 10Gbit LAN SFP+ female, 8 x 25Gbit LAN SFP28 female
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 65 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 1,543,328 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Status Indicators: Diagnostic, Identify, Link/activity, Master, Power, Speed/activity, Status, System, USB
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 11 inch
Weight: 8.25 lbs
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, China RoHS, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, RoHS, TCVN 7189 Class A, TCVN 7317, UK RoHS, UL 62368-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
