Product Information

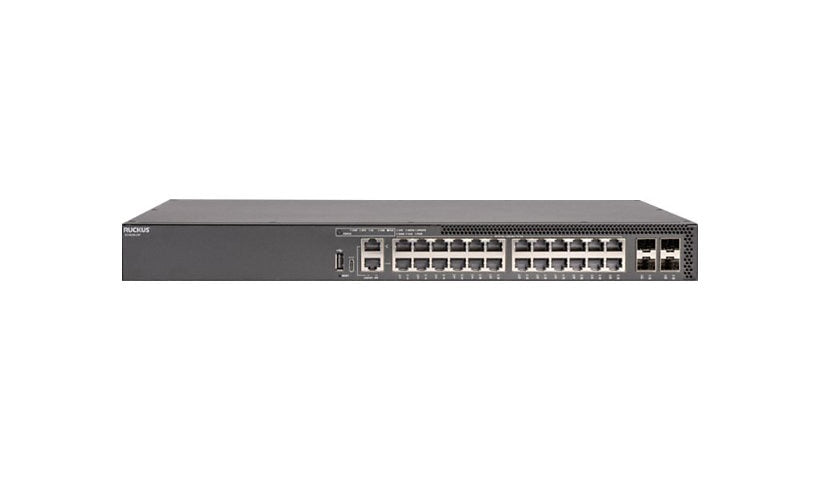

Ruckus' ICX8200-24ZP is a stackable Layer 3 switch with 24 2.5G PoE++ ports at up to 90 W and four 25G SFP28 ports for uplink or stacking. It has a 740 W PoE budget and 320 Gbps of switching capacity, with one hot-plug power supply installed, and it is TAA compliant.
Key Features
- 24 x 100M/1G/2.5G RJ-45 PoE++ ports, 90 W
- 4 x 25G SFP28 uplink/stacking ports
- 740 W PoE budget
- 320 Gbps switching, 237 Mpps
- Stack up to 12 units
- 1 hot-plug power supply, TAA compliant
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 8200
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Remote Management: CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol: GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPF, OSPFv2, OSPFv3, Policy-based routing (PBR), Static IPv4 routing, Static IPv6 routing, VRF, VRRP, VRRPE, VRRPv3
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Forwarding performance: 237 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 320 Gbps
Capacity: Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: 1 fan, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, DDos attack prevention, DHCP relay, DHCP server, DHCP support, Dynamic VLAN Support (GVRP), Flow control, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address filtering, Metro Ring Protocol (MRP) support, MLD snooping, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM snooping, Port Loop Detection, Port mirroring, Private VLAN, Protocol Independent Multicast (PIM), Q-in-Q tunneling, Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), Root Guard, sFlow, Spanning Tree Protocol (STP) support, Uni-Directional Link Detection (UDLD), Virtual Switch Redundancy Protocol (VSRP) support, VLAN / port mapping, VLAN support, Weighted Round Robin (WRR) queuing
Max Units In A Stack: 12
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 100/1000/2.5G (PoE++)
Interface Provided: 1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 24 x 100/1000/2.5G (PoE++) RJ-45 90 W, 4 x 25 GbE SFP28 uplink/stacking
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 950 watt
PoE Budget: 740 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 936,765 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 11 inch
Certifications and Listing
Compliant Standards: BSMI, CAN/CSA-C22.2 No. 62368-1, Directive 2006/66/EC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 94/62/EC, EN 300 386, EN 55032, EN 55035, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN55024, FCC Part 15 B Class A, ICES-003, IEC 60068-2-36, IEC 60950-1, IEC 62368-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-6, KN32 Class A, KN35 Class A, REACH 1907/2006/CE, RoHS 2011/65/EU, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime, Limited warranty - technical support - 3 years
