Product Information

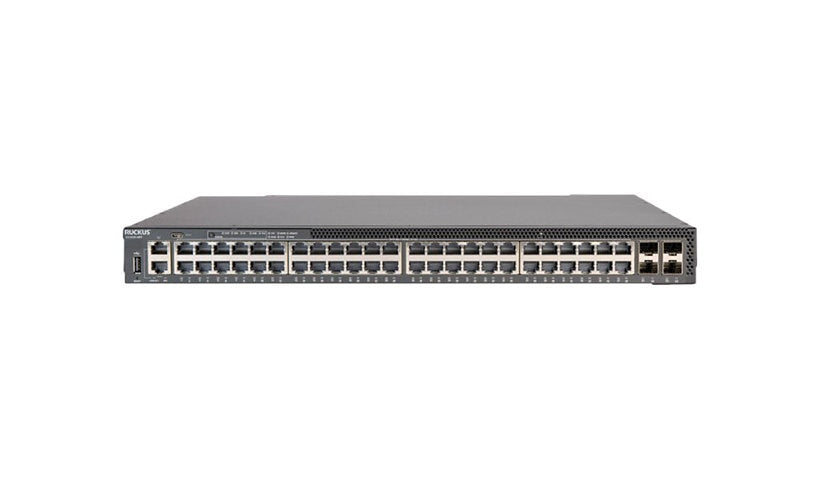

Ruckus' ICX8200-48PF is a stackable Layer 3 switch with 48 Gigabit PoE+ ports and four 25G SFP28 ports for uplink or stacking. It has a 740 W PoE budget, 296 Gbps of switching capacity and stacking for up to 12 units, with one power supply installed.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 25G SFP28 uplink/stacking ports
- 740 W PoE budget
- 296 Gbps switching, 220 Mpps
- Stack up to 12 units
- 1 power supply installed
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 8200-48PF
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Remote Management: CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol: GRE, OSPF, Static IPv4 routing, Static IPv6 routing, VRRP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Forwarding performance: 220 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 296 Gbps
Capacity: Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Max Units In A Stack: 12
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 25 GbE SFP28 (stacking / uplink)
Interface Provided: 1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 4 x 25 GbE SFP28 uplink/stacking, 48 x 10/100/1000 Base-T (PoE+) RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100 - 240 volt
Frequency: 50 - 60 hertz
Power Provided: 880 watt
PoE Budget: 740 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 14.6 inch
Weight: 12.15 lbs
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime, Limited warranty - technical support - 3 years
