Product Information

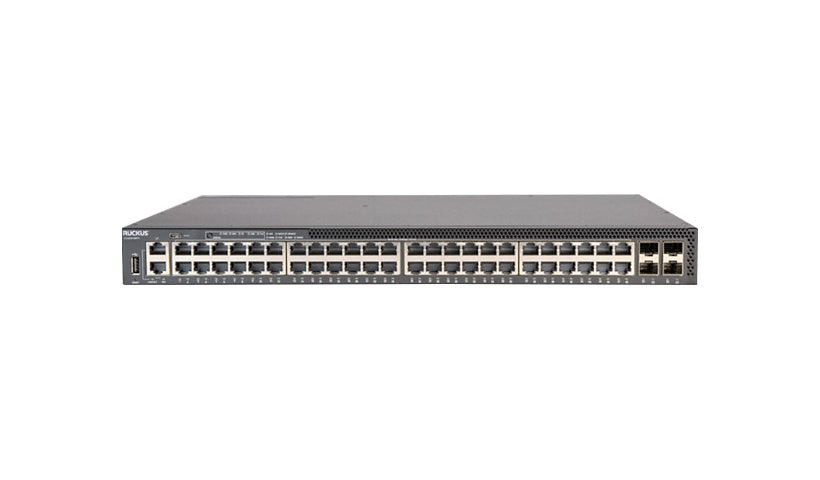

The Ruckus ICX8200-48ZP2-E2 is a stackable Layer 3 campus switch with 16 ports at 2.5GbE delivering PoE++ and 32 Gigabit PoE+ ports, plus 25GbE uplinks. It provides a 1,480 W PoE budget, stacks up to 12 units with 1.2 Tbps of stacking bandwidth and ships with two hot-plug power supplies.
Key Features
- 16 x 2.5GbE RJ-45 PoE++ ports
- 32 x Gigabit RJ-45 PoE+ ports
- 4 x 25GbE uplinks
- 1,480 W PoE budget
- Layer 3, stacks up to 12 units
- 2 hot-plug power supplies, 1+1
- Rack mount, front-to-back airflow
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 8200
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Remote Management: CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol: GRE, OSPF, Static IPv4 routing, Static IPv6 routing, VRRP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Forwarding performance: 254 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 344 Gbps
Capacity: Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: ARP support, BOOTP support, DDos attack prevention, DHCP support, Flow control, MAC address filtering, Metro Ring Protocol (MRP) support, PIM snooping, Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, VLAN support, Weighted Round Robin (WRR) queuing
Max Units In A Stack: 12
Connectivity
Ports: 48
Port Quantity: 32
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 16
Ports Type (2nd): 10/100/1000/2500 (PoE++)
Interface Provided: 1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 16 x 10/100/1000/2500 Base-T (PoE++) RJ-45, 32 x 10/100/1000 Base-T (PoE+) RJ-45, 4 x 25 GbE SFP28 uplink/stacking
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 920 watt
PoE Budget: 1480 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Built-in Devices: 2 x fans
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 14.6 inch
Weight: 14.64 lbs
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime, Limited warranty - technical support - 3 years
