Product Information

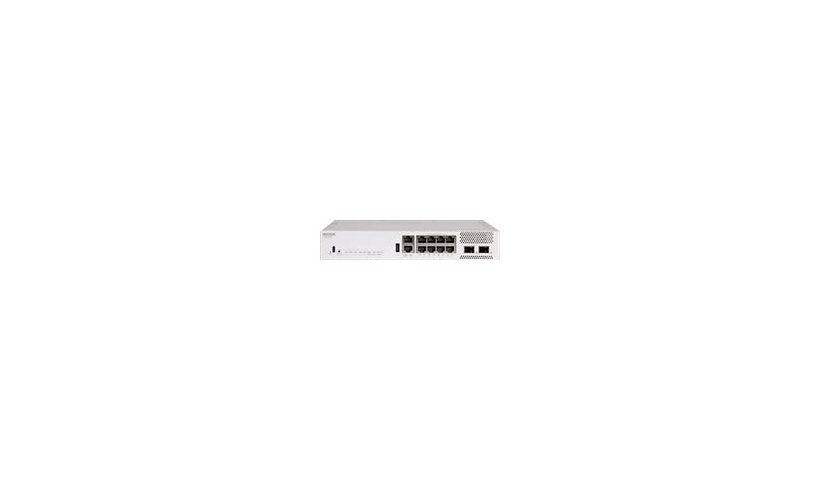

The Ruckus ICX 8200-C08PF is a compact Layer 3 switch with eight Gigabit PoE+ ports and two 1/10G SFP+ ports for uplinks or stacking. It shares a 124 W PoE budget and stacks up to 12 units with 240 Gbps of stacking bandwidth, for wireless-first and IoT campus edges.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports
- 2 x 1/10G SFP+ (uplink or stacking)
- 124 W PoE budget
- Layer 3, stacks up to 12 units
- 4 GB RAM, 8 GB flash
- Desktop, 1 power supply installed
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 8200-C08PF
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Remote Management: CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol: GRE, OSPF, Static IPv4 routing, Static IPv6 routing, VRRP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Forwarding performance (full duplex): 42 Mpps, Stacking bandwidth: 240 Gbps, Switching capacity (full duplex): 56 Gbps
Capacity: ARP entries: 8192, Maximum number of VLANs: 4095, PVLANs supported: 32, STP instances: 253
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: ARP support, BOOTP support, DDos attack prevention, DHCP support, Flow control, MAC address filtering, Metro Ring Protocol (MRP) support, PIM snooping, Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, VLAN support, Weighted Round Robin (WRR) queuing
Max Units In A Stack: 12
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Interface Provided: 1 x RJ-45 out-of-band network management, 1 x serial RJ-45 console management, 1 x USB Type A storage, 1 x USB-C console management, 2 x Gigabit SFP / 10 Gb SFP+ SFP+, 8 x 10/100/1000 Base-T (PoE+) RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 240 watt
PoE Budget: 124 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
MTBF: 2,007,069 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1.7 inch
Width: 10.6 inch
Depth: 8.4 inch
Weight: 5 lbs
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
Compliant Standards: IEEE 802.3at, IEEE 802.3az
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime, Limited warranty - technical support - 3 years
