Product Information

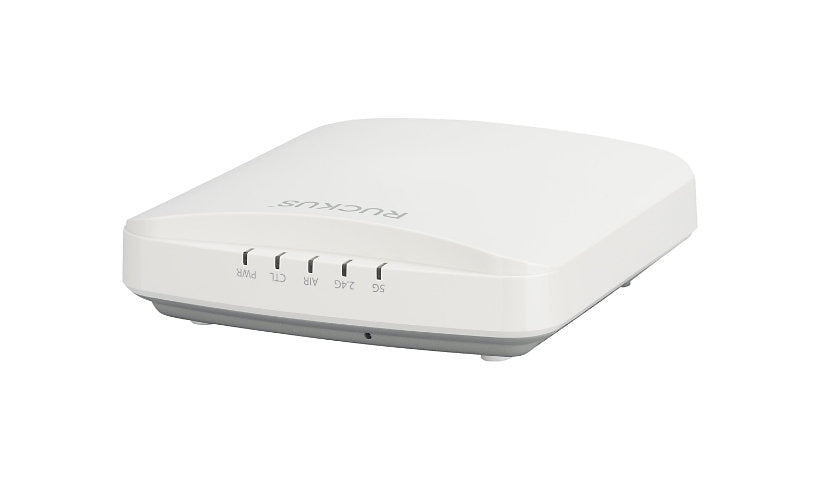

The Ruckus R350 is an entry level indoor Wi-Fi 6 access point for small offices and hotspots, with 2x2 MU-MIMO and ChannelFly. It has a Gigabit PoE port and USB, draws about 12.62 W and can be mounted on a desk, wall or ceiling.
Key Features
- Wi-Fi 6 dual band, 2x2 MU-MIMO
- ChannelFly, airtime fairness
- Gigabit RJ-45, PoE
- USB port
- About 12.62 W
- Desk, wall or ceiling mount
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: R350
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: L2TP
Authentication Method: Basic Service Set Identifier (BSSID), RADIUS
Encryption: AES, TKIP, WPA-PSK, WPA2
Capacity: Concurrent users: 256, Maximum number of configured SSIDs: 16
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1200 Mbps
Antenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Features: 2x2 MU-MIMO technology, 2x2 SU-MIMO technology, Access Control List (ACL) support, Airtime Fairness, Airtime-based WLAN Prioritization, Captive Portal, Ceiling mountable, ChannelFly, HotSpot 2.0, Hotspot Access Point Capability, IPv4 support, IPv6 support, L2TP support, Load balancing, Low Density Parity Check (LDPC), Port-based VLAN, Quality of Service (QoS), RADIUS support, Reset button, Security slot (Kensington security lock compatible), SmartRoam, SmartZone, Space Time Blocking Code (STBC), SpeedFlex, STBC support, VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication, WMM Power Save
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 12.62 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Desktop / wall / ceiling mountable
Dimensions and Weight
Height: 1.5 inch
Width: 6.1 inch
Depth: 5.7 inch
Weight: 12.98 ounce
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, ISTA 2A, RoHS, UL 2043, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
