Product Information

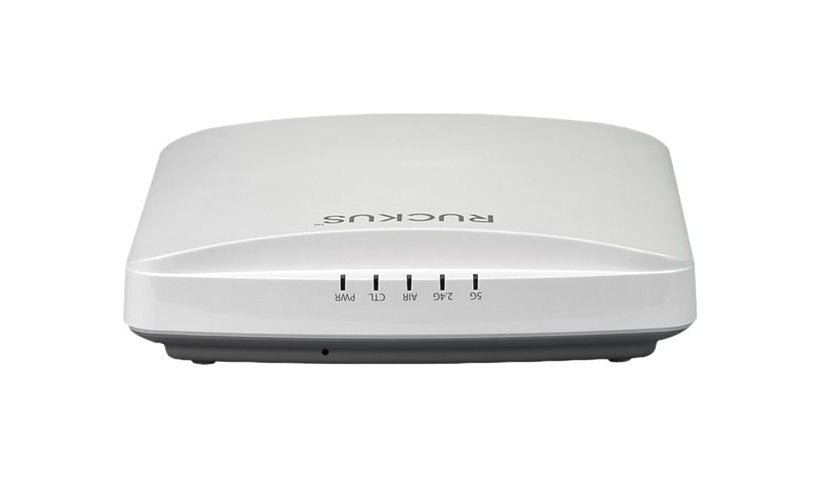

The Ruckus R550 (901-R550-US00) is a mid-range dual band Wi-Fi 6 access point for dense spaces, with four spatial streams (2x2:2 per band) up to 1774 Mbps and BeamFlex antennas. It includes BLE and Zigbee radios, two Gigabit ports and USB, powered by PoE+ or DC.
Key Features
- Wi-Fi 6 dual band: 2.4, 5 GHz
- Up to 1774 Mbps
- BeamFlex smart antennas
- Bluetooth LE and Zigbee
- 2 x Gigabit RJ-45 (1 PoE), USB
- About 18.71 W
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: R550
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: RADIUS
Encryption: AES, Opportunistic Wireless Encryption (OWE), TKIP, WPA-PSK, WPA2, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Data Transfer Rate: 1774 MBps
Capacity: Maximum number of clients: 512, Maximum number of configured SSIDs: 31
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Features: 2x2 MU-MIMO technology, 2x2 SU-MIMO technology, 802.1x authentication, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Airtime-based WLAN Prioritization, Application recognition and control, Background scan based, BeamFlex+ Smart Antenna Technology, Captive Portal, Ceiling mountable, ChannelFly, Client load balancing, Device fingerprinting, GRE tunneling, HotSpot 2.0, Hotspot Access Point Capability, IPv4 and IPv6 dual stack, Low Density Parity Check (LDPC), Multicast mode, Polarization Diversity with Maximal Ratio Combining (PD-MRC), Policy based rate limiting, Port-based VLAN, Quality of Service (QoS), Security lock slot (cable lock sold separately), SmartCast, SmartMesh, SmartRoam, SmartZone, SoftGRE tunneling, Space Time Blocking Code (STBC), Spectrum Analysis, SpeedFlex, Transmit Beamforming, VLAN pooling, Wall mountable, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication, WMM Power Save
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 1000Base-T (PoE) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 18.71 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.9 inch
Width: 7.5 inch
Depth: 6.9 inch
Weight: 19.82 ounce
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, ISTA 2A, RoHS, UL 2043, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Service Activation: No
