Product Information

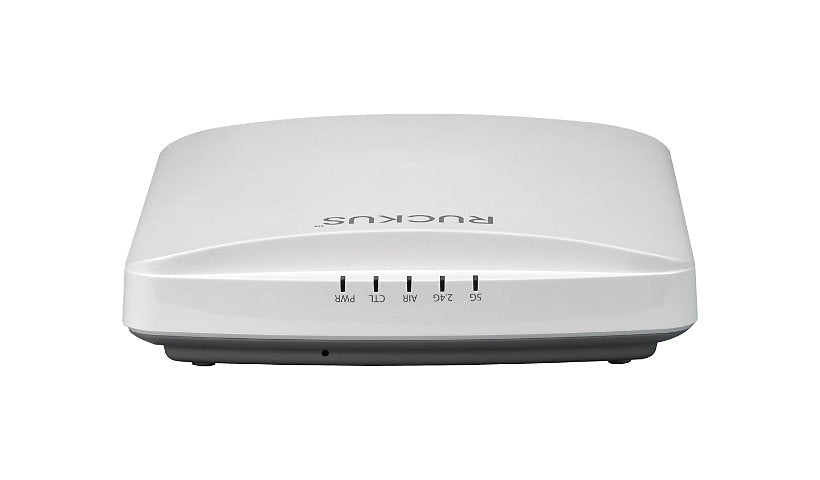

The Ruckus R650 (9U1-R650-US00) is the Unleashed controller-less version of a mid-range dual band Wi-Fi 6 access point with six spatial streams (4x4:4 on 5 GHz, 2x2:2 on 2.4 GHz). It has BeamFlex+ antennas, BLE and Zigbee, a 2.5G PoE+ port, a Gigabit port and USB.
Key Features
- Wi-Fi 6 dual band: 2.4, 5 GHz
- 4x4:4 (5 GHz) + 2x2:2 (2.4 GHz)
- Unleashed edition (no controller)
- BeamFlex+ smart antennas
- 2.5G PoE+ and 1G RJ-45, USB
- About 21.59 W
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: R650
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: RADIUS
Encryption: TKIP, WPA, WPA-PSK, WPA3
Data Transfer Rate: 2.5 GBps
Capacity: Maximum number of clients: 512, Maximum number of configured SSIDs: 31
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Features: 4x4:4 MU-MIMO technology, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Application recognition and control, Background scan based, BeamFlex+ Smart Antenna Technology, Bluetooth (BLE) clients support, Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, HotSpot 2.0, IPv4 and IPv6 dual stack, Low Density Parity Check (LDPC), Polarization Diversity with Maximal Ratio Combining (PD-MRC), Smart QoS, SmartMesh, SmartRoam, SmartZone, Spectrum Analysis, SpeedFlex, STBC support, VLAN pooling, VLAN support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISP mode, WMM Power Save
Edition: Unleashed
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 2.5 GBase-T (PoE+) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 21.59 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.9 inch
Width: 7.6 inch
Depth: 8.8 inch
Weight: 30.12 ounce
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, ISTA 2A, RoHS, UL 2043, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Service Activation: No
