Product Information

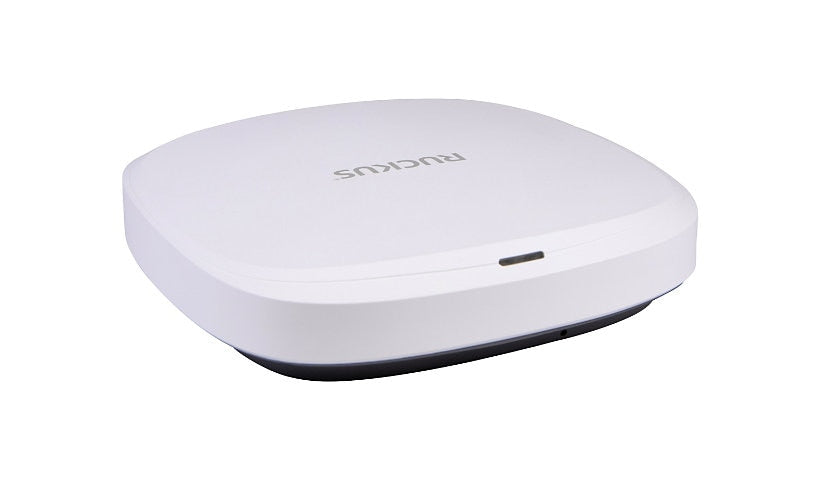

The Ruckus R670 (901-R670-US00) is a tri-band Wi-Fi 7 indoor access point with BeamFlex+ smart antennas, offering up to 9.34 Gbps across 2.4, 5 and 6 GHz. It has a 5G PoE++ port, a Gigabit port and USB, with built in BLE and Zigbee. It mounts on a desk, wall or ceiling and includes a drop ceiling bracket.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- Up to 9.34 Gbps
- BeamFlex+ smart antennas
- 5G PoE++ and 1G RJ-45 ports, USB
- BLE and Zigbee IoT
- Drop ceiling bracket included
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: R670
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: IPv4, IPv6
Encryption: Dynamic PSK, Opportunistic Wireless Encryption (OWE), PMF, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE
Data Transfer Rate: 9.34 GBps
Capacity: Concurrent clients: 768, SSIDs total: 36
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 689 Mbps, Maximum data rate (5 GHz): 5765 Mbps, Maximum data rate (6 GHz): 5765 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 4 DBi
Features: 2x2:2 streams, 4x4:4 streams, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Airtime-based WLAN Prioritization, Background scan based, BeamFlex+ Smart Antenna Technology, Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, GRE tunneling, Guest access, HotSpot 2.0, LLDP support, Low Density Parity Check (LDPC), MU-MIMO technology, Multi-Link Operation (MLO), Polarization Diversity with Maximal Ratio Combining (PD-MRC), Port-based VLAN, Power over HDBaseT (PoH), PowerSave, Preamble puncturing, Quality of Service (QoS), Rate limit, Secure Boot, SmartMesh, SoftGRE tunneling, Space Time Blocking Code (STBC), SU-MIMO technology, Trusted Platform Module 2.0 (TPM 2.0), Universal power over Ethernet (UPOE), URL filtering, VLAN pooling, Web authentication, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication
IoT Platform: Matter
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 5GBase-T (PoE) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: Up to 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Desktop / wall / ceiling mountable
Dimensions and Weight
Height: 1.9 inch
Width: 8.7 inch
Depth: 8.7 inch
Weight: 2.25 lbs
Included Items
Included Accessories: Adjustable acoustic drop ceiling bracket
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, ISTA 2A, RoHS, UL 2043, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
