Product Information

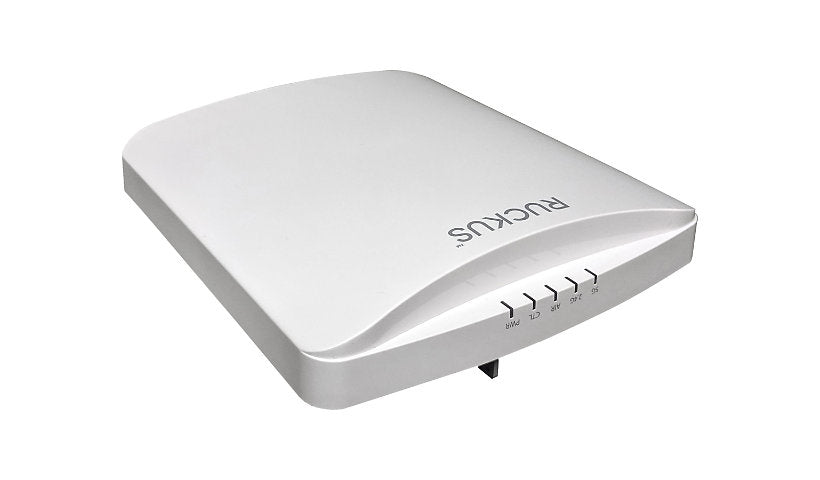

This is the TAA compliant Ruckus R750 (9F1-R750-US00), an indoor Wi-Fi 6 access point with 4x4:4 streams and BeamFlex+ for transit hubs, auditoriums and conference centers. It has 2.5G and Gigabit PoE ports, USB, BLE and Zigbee support.
Key Features
- TAA compliant version
- Wi-Fi 6, 4x4:4, BeamFlex+
- 2.5G + 1G PoE ports
- USB port
- BLE and Zigbee
- Cloud or controller managed
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: R750
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: Basic Service Set Identifier (BSSID), RADIUS
Encryption: AES, Opportunistic Wireless Encryption (OWE), TKIP, WPA-PSK, WPA2, WPA3
Line Coding Format: OFDM
Capacity: Antenna patterns (per band): 4000+, Concurrent users: 1024, Rx sensitivity (2.4 / 5GHz): -102dBm, SSIDs per radio: 31
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Maximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Features: 4x4 MU-MIMO technology, 4x4 SU-MIMO technology, 4x4:4 streams, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Backhaul Technology, BeamFlex+ Smart Antenna Technology, Bluetooth (BLE) clients support, Ceiling mountable, ChannelFly, DHCP support, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Manageable, Maximum Ratio Combining (MRC), NAT support, Quality of Service (QoS), Security lock slot (cable lock sold separately), SmartMesh, Space Time Blocking Code (STBC), VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE+) - RJ-45, 1 x 2.5 GBase-T (PoE), 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 2.4 inch
Width: 8.1 inch
Depth: 9.3 inch
Weight: 2.23 lbs
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, ISTA 2A, RoHS, UL 2043, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
