Product Information

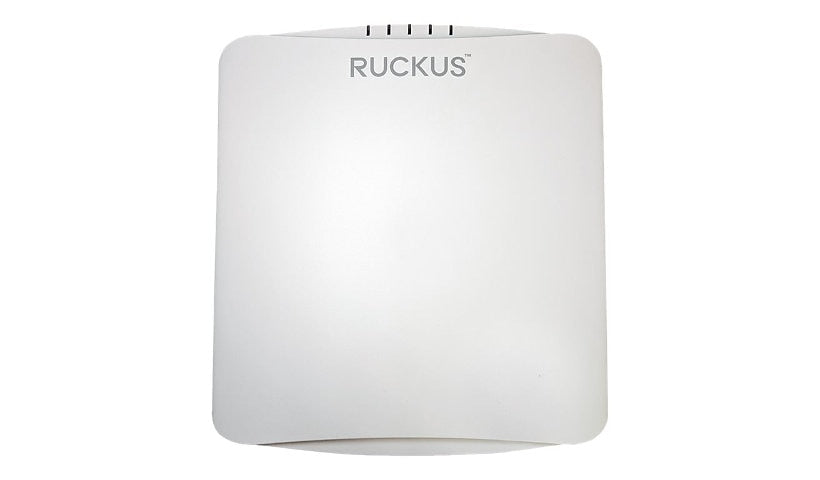

The Ruckus R750 Unleashed is an indoor Wi-Fi 6 access point with 4x4:4 streams and BeamFlex+, set up without a separate controller, for transit hubs, auditoriums and conference centers. It has 2.5G and Gigabit PoE ports, USB, BLE and Zigbee, and includes an adjustable drop ceiling bracket.
Key Features
- Wi-Fi 6, 4x4:4, BeamFlex+
- Unleashed, controller free
- 2.5G + 1G PoE ports
- USB, BLE, Zigbee
- ChannelFly
- Drop ceiling bracket included
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ZoneFlex
Model: R750
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Capacity: Antenna patterns (per band): 4000+, Concurrent users: 1024, Rx sensitivity (2.4 / 5GHz): -102dBm
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Maximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Features: 4x4:4 streams, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Backhaul Technology, BeamFlex+ Smart Antenna Technology, Bluetooth (BLE) clients support, Ceiling mountable, ChannelFly, DHCP support, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Manageable, Maximum Ratio Combining (MRC), MU-MIMO technology, NAT support, Quality of Service (QoS), Security lock slot (cable lock sold separately), Smart Mesh technology, Space Time Blocking Code (STBC), VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support
Edition: Unleashed
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45, 1 x 2.5 GBase-T (PoE), 1 x USB 2.0
Power Over Ethernet (PoE): PoE
Technical Information
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Included Items
Included Accessories: Adjustable acoustic drop ceiling bracket
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
