Product Information

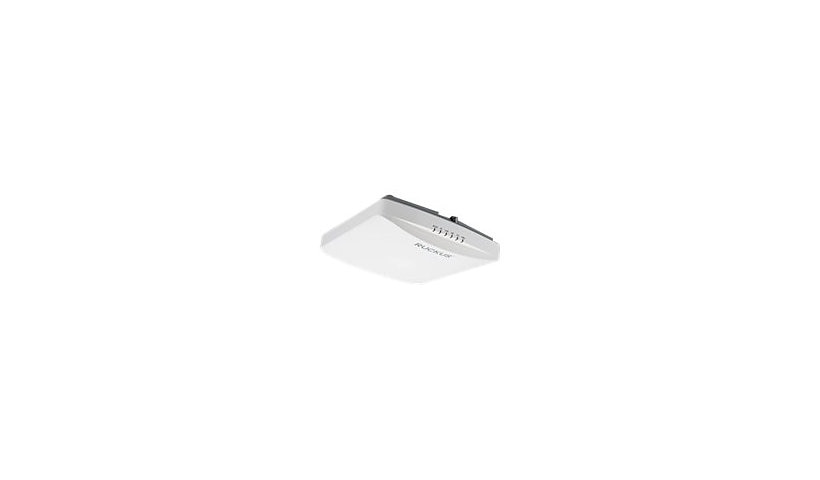

The Ruckus R760 is a Wi-Fi 6E AP running all three bands at once, with 12 spatial streams (4x4:4 on each of 6, 5 and 2.4 GHz) and support for up to 1536 clients. It has a 10G port, a Gigabit port, USB, BLE and Zigbee, plus ChannelFly and PD-MRC.
Key Features
- Wi-Fi 6E tri-band, 12 streams
- 4x4:4 on every band
- Up to 1536 clients
- 10G + 1G Ethernet
- BLE, Zigbee, USB
- ChannelFly, PD-MRC
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: R760
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Capacity: Concurrent users: 1536
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps, Maximum data rate (6 GHz): 4800 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Features: 4x4:4 MU-MIMO technology, ChannelFly, Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 10Gb Ethernet, USB
Technical Information
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Built-in Devices: LED panel
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
