Product Information

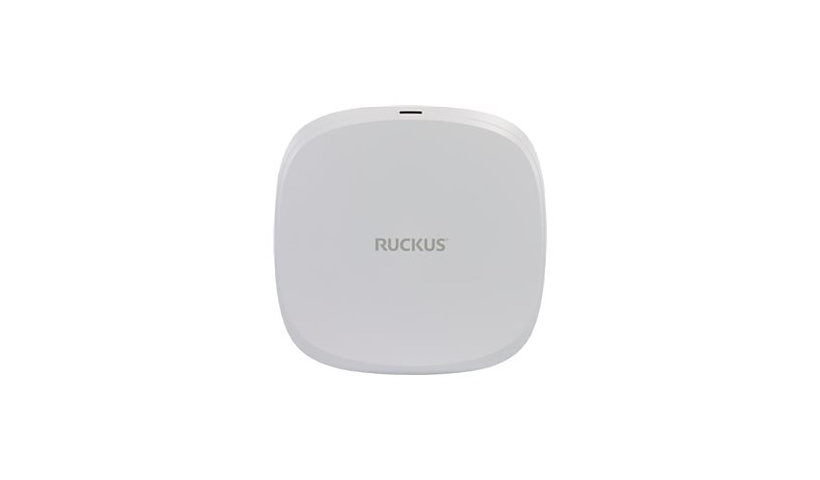

The Ruckus R770 (901-R770-WW00) is the worldwide version of this Wi-Fi 7 tri-band access point for high density sites, supporting up to 1024 users and 12.22 Gbps. It has BeamFlex+ antennas, a 10G and a Gigabit port, USB, BLE and Zigbee, and includes a drop ceiling bracket.
Key Features
- Wi-Fi 7 tri-band, up to 12.22 Gbps
- Up to 1024 users
- 10G and 1G RJ-45, USB
- BeamFlex+ smart antennas
- BLE and Zigbee
- Worldwide version
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: R770
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Worldwide
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Network Standard: IPv4, IPv6
Routing Protocol: GRE
Authentication Method: RADIUS
Encryption: Dynamic PSK, Opportunistic Wireless Encryption (OWE), PMF, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE
Data Transfer Rate: 12.22 GBps
Capacity: Concurrent users: 1024, SSIDs total: 36
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 / 320 MHz, Maximum data rate (2.4 GHz): 689 Mbps, Maximum data rate (5 GHz): 5765 Mbps, Maximum data rate (6 GHz): 5765 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 4 DBi
Features: 2x2:2 streams, 4x4:4 streams, 802.1x authentication, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Airtime-based WLAN Prioritization, Backhaul Technology, BeamFlex+ Smart Antenna Technology, Beamforming technology, Bluetooth Low Energy (BLE), Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, Guest access, HotSpot 2.0, IPv4 and IPv6 dual stack, LLDP support, Low Density Parity Check (LDPC), MU-MIMO technology, Multi-Link Operation (MLO), Port-based VLAN, PowerSave, Preamble puncturing, Quality of Service (QoS), Rate limit, Secure Boot, SmartMesh, SmartRoam, SmartZone, Space Time Blocking Code (STBC), Spectrum Analysis, SpeedFlex, SU-MIMO technology, Trusted Platform Module 2.0 (TPM 2.0), URL filtering, VLAN pooling, Web authentication, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 10Gb Ethernet - RJ-45, 1 x USB 2.0 - Type A
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Desktop / wall / ceiling mountable
Dimensions and Weight
Height: 2.3 inch
Width: 9.2 inch
Depth: 9.2 inch
Weight: 3 lbs
Included Items
Included Accessories: Adjustable acoustic drop ceiling bracket
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, IEEE 802.15, ISTA 2A, RoHS, UL 2043, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, Wi-Fi CERTIFIED 7
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
