Product Information

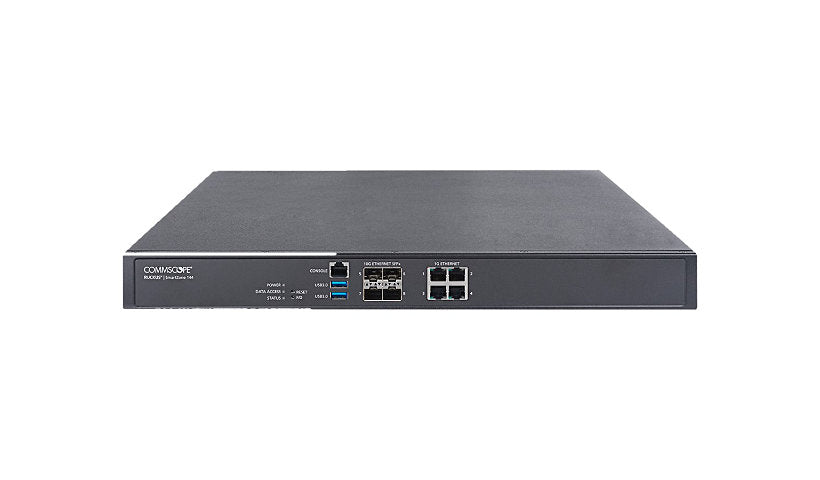

The Ruckus SmartZone 144 (P01-S144-UN00) is a 1U wired and wireless network controller for midsize enterprises with many campuses or remote offices. It manages up to 6,000 access points, 1,200 switches and 120,000 clients, with 4,096 VLANs and 2,048 WLANs, and helps automate routine IT tasks with visual client troubleshooting and zero touch setup. Ports include 4 x gigabit RJ-45, 4 x 10G SFP+, an RJ-45 console and 2 USB 3.0. Features include guest access, captive portal, WISPr, mesh, client load balancing, SmartCast and LDAP and RADIUS authentication, with CLI, HTTP and SNMP v1/v2/v3 management. It has 3 redundant fans, 135 W power and an MTBF of 167,007 hours.
Key Features
- Up to 6,000 APs
- 1,200 switches managed
- 120,000 clients
- 4 x 10G SFP+, 4 x 1G
- Guest access, captive portal
- 1U, redundant fans
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus SmartZone
Model: 144
Product Type: Network management device
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Network Standard: DHCP
Remote Management: CLI, HTTP, SNMP 1, SNMP 2, SNMP 3
Authentication Method: RADIUS
Encryption: AES, WEP, WPA, WPA2
Capacity: Concurrent devices: 120000, Manageable access points: 6000, Managed clients: 120000, Managed switches: 1200, VLANs supported: 4096, Wireless LANs: 2048
Features: 3 redundant fans, Access Control List (ACL) support, Black list, Captive Portal, Client load balancing, DHCP server, DHCP support, Guest access, LDAP support, Load balancing, mDNS, Mesh networking, NAT support, Rate limit, SmartCast, Unscheduled Automatic Power Save Delivery (U-APSD), White list, Wi-Fi Multimedia (WMM) support, WISPr authentication
Connectivity
Interface Provided: 1 x console - RJ-45, 2 x USB 3.0 - Type A, 4 x 1000Base-T - RJ-45, 4 x 10Gb Ethernet - SFP+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 135 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 85% (non-condensing)
MTBF: 167,007 hour(s)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Data, Power, Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.1 inch
Depth: 20.6 inch
Weight: 15.37 lbs
Certifications and Listing
Compliant Standards #2: IEEE 802.11e, IEEE 802.11i, IEEE 802.1x, UPnP
Compliant Standards: ANATEL, AS/NZS CISPR 32, BIS, BSMI CNS 13438, BSMI CNS 14336-1, CCC, CISPR 32, EN 55032, EN 55032 Class A, EN 55035:2017 Class A, EN 62368-1, FCC Part 15 B Class A, GB 17625.1, GB 4943, GB 4943.1, GB 9254, ICES-003 Class A, IEC 60950, IEC 60950-1, IEC 62368-1, IS13252, KCC KN32, KCC KN35, KN32, KN35, NOM, NRCS, NRTL, SABS, UL/CSA/EN 62368-1, VCCI
Compliant Standards: IEEE 802.11e, IEEE 802.11i, IEEE 802.1x, UPnP
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this device fits your network? Send us your current equipment models and what you need to monitor or manage, and the DatorPro team will confirm compatibility before you order.
