Product Information

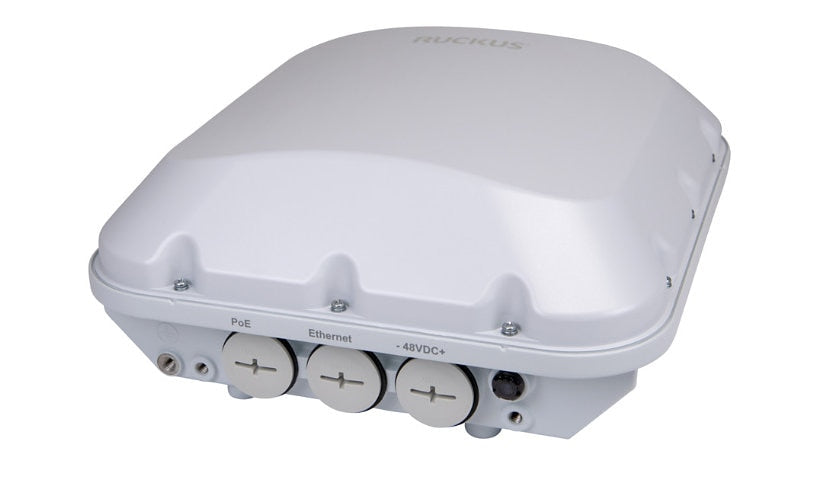

The Ruckus T670 (901-T670-US01) is an outdoor Wi-Fi 7 tri-band access point with BeamFlex+ antennas and up to 9.34 Gbps, supporting up to 768 clients and 36 SSIDs. It has a 5G multi-gig PoE port and a Gigabit port, works from -40 to 149 °F and mounts on a wall or pole. The power injector is not included.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- Up to 9.34 Gbps, 768 clients
- BeamFlex+ smart antennas
- 1/2.5/5G PoE + 1G RJ-45
- Outdoor, -40 to 149 °F
- Power injector not included
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: T670
Product Type: Wireless access point
Device Type: Power injector (not included)
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: IPv4, IPv6
Encryption: Dynamic PSK, Opportunistic Wireless Encryption (OWE), PMF, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE
Data Transfer Rate: 9.34 GBps
Capacity: Concurrent clients: 768, Maximum number of configured SSIDs: 36
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 689 Mbps, Maximum data rate (5 GHz): 5765 Mbps, Maximum data rate (6 GHz): 5765 Mbps
Antenna Form Factor: Internal
Antenna Gain Level: 4 DBi
Features: 2x2 MU-MIMO technology, 2x2 SU-MIMO technology, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Background scan based, BeamFlex+ Smart Antenna Technology, Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, GRE tunneling, Guest access, HotSpot 2.0, IPv4 and IPv6 dual stack, LLDP support, Low Density Parity Check (LDPC), Multi-Link Operation (MLO), Polarization Diversity with Maximal Ratio Combining (PD-MRC), Port-based VLAN, Preamble puncturing, QoS, Quad-stream (4x4), Rate limit, Secure Boot, Self-healing network, SmartMesh, SmartRoam, SmartZone, SoftGRE tunneling, Space Time Blocking Code (STBC), Spectrum Analysis, SpeedFlex, Trusted Platform Module 2.0 (TPM 2.0), URL filtering, VLAN pooling, Web authentication, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication
Connectivity
Interface Provided: 1 x 1/2.5/5GBase-T (PoE) - RJ-45, 1 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): UPOE / PoH / PoE+
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Dimensions and Weight
Height: 4.3 inch
Width: 9.4 inch
Depth: 9.8 inch
Weight: 6.17 lbs
Included Items
Included Accessories: Mounting bracket
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, ISTA 2A, RoHS, WEEE
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
