Product Information

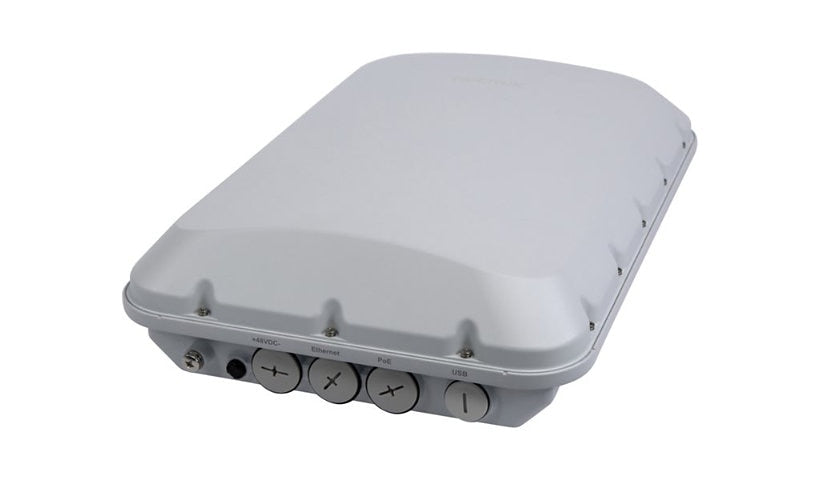

The Ruckus T670SN (901-T670-US51) is a ruggedized outdoor Wi-Fi 7 tri-band access point with up to 9.34 Gbps and a 4 dBi antenna. It has a 5G multi-gig PoE port and a Gigabit port, works from -40 to 149 °F, and mounts on a wall or pole. The power injector is not included.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- Up to 9.34 Gbps
- 1/2.5/5G PoE + 1G RJ-45
- Outdoor, -40 to 149 °F
- Wall or pole mount, bracket included
- Power injector not included
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: T670SN
Product Type: Wireless access point
Device Type: Power injector (not included)
Compatibility Specs: P/N: 902-0134-0000
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: IPv4, IPv6
Encryption: Dynamic PSK, Opportunistic Wireless Encryption (OWE), PMF, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE
Data Transfer Rate: 9.34 GBps
Capacity: Concurrent clients: 768, Maximum number of configured SSIDs: 36
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 / 320 MHz, Maximum data rate (2.4 GHz): 689 Mbps, Maximum data rate (5 GHz): 5765 Mbps, Maximum data rate (6 GHz): 5765 Mbps
Antenna Form Factor: Internal
Antenna Gain Level: 4 DBi
Features: 2x2 MU-MIMO technology, 2x2 SU-MIMO technology, 2x2:2 streams, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Background scan based, Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, GRE tunneling, Guest access, HotSpot 2.0, IPv4 and IPv6 dual stack, LLDP support, Low Density Parity Check (LDPC), Multi-Link Operation (MLO), Polarization Diversity with Maximal Ratio Combining (PD-MRC), Port-based VLAN, Preamble puncturing, QoS, Quad-stream (4x4), Rate limit, Secure Boot, Self-healing network, SmartMesh, SmartRoam, SmartZone, SoftGRE tunneling, Space Time Blocking Code (STBC), Spectrum Analysis, SpeedFlex, Trusted Platform Module 2.0 (TPM 2.0), URL filtering, VLAN pooling, Web authentication, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication
Connectivity
Interface Provided: 1 x 1/2.5/5GBase-T (PoE) - RJ-45, 1 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): UPOE / PoH / PoE+
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Dimensions and Weight
Height: 4.3 inch
Width: 9.4 inch
Depth: 9.8 inch
Weight: 6.17 lbs
Included Items
Included Accessories: Mounting bracket
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, ISTA 2A, RoHS, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
