Product Information

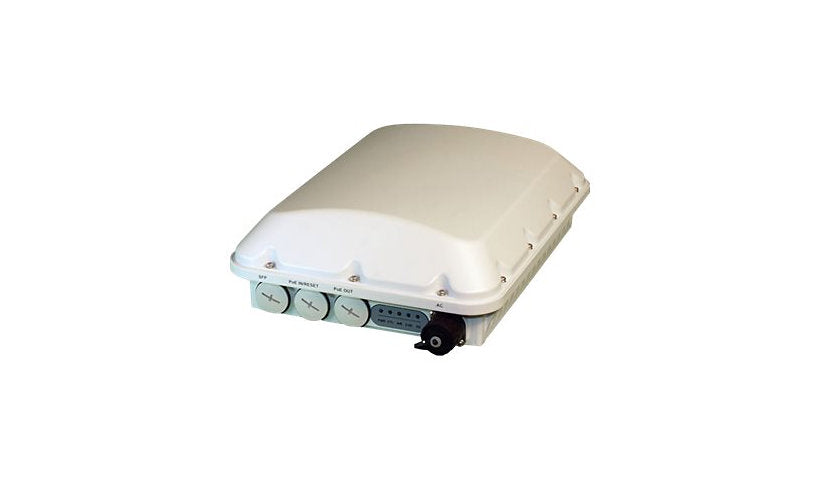

This Ruckus T750 variant (901-T750-US51) is an outdoor Wi-Fi 6 access point with 4x4:4 streams and BeamFlex+. It has an IP67 enclosure rated -40 to 149 °F, 2.5G and Gigabit PoE+ ports and a 1/10G SFP+ port. Specs match the US01 model; please confirm the US51 suffix with us if a specific SKU is required.
Key Features
- Outdoor Wi-Fi 6, 4x4:4
- BeamFlex+
- IP67, -40 to 149 °F
- 2.5G + 1G PoE+
- 1/10G SFP+ port
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: T750
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPv4, IPv6, L2TP
Authentication Method: Basic Service Set Identifier (BSSID), RADIUS
Encryption: AES, TKIP, WPA-PSK, WPA2, WPA3
Line Coding Format: OFDMA
Capacity: Maximum number of clients: 1024
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Maximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps
Internet of Things (IoT) Compatible: Yes
Features: 4x4 MU-MIMO technology, 4x4 SU-MIMO technology, 4x4:4 streams, 802.1x authentication, Access Control List (ACL) support, Airtime Fairness, BeamFlex+ Smart Antenna Technology, Beamforming technology, Captive Portal, GRE tunneling, HotSpot 2.0, Hotspot Access Point Capability, IPv4 and IPv6 dual stack, Link Aggregation Control Protocol (LACP), Load balancing, Low Density Parity Check (LDPC), Mesh networking, Pole mountable, Port-based VLAN, Quality of Service (QoS), Rate limit, Smart Mesh technology, SmartRoam, SmartZone, Space Time Blocking Code (STBC), Spectrum Analysis, SpeedFlex, Weatherproof, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication
Connectivity
Interface Provided: 1 x 1000Base-T (PoE+) - RJ-45, 1 x 1Gb Ethernet/10Gb Ethernet - SFP+, 1 x 2.5 GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Power Consumption Operational: 63.7 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Built-in Devices: GLONASS, GPS
Dimensions and Weight
Height: 4 inch
Width: 9.5 inch
Depth: 13.6 inch
Weight: 6.26 lbs
Certifications and Listing
Compliant Standards: EN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, IP67, ISTA 2A, RoHS, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
