Product Information

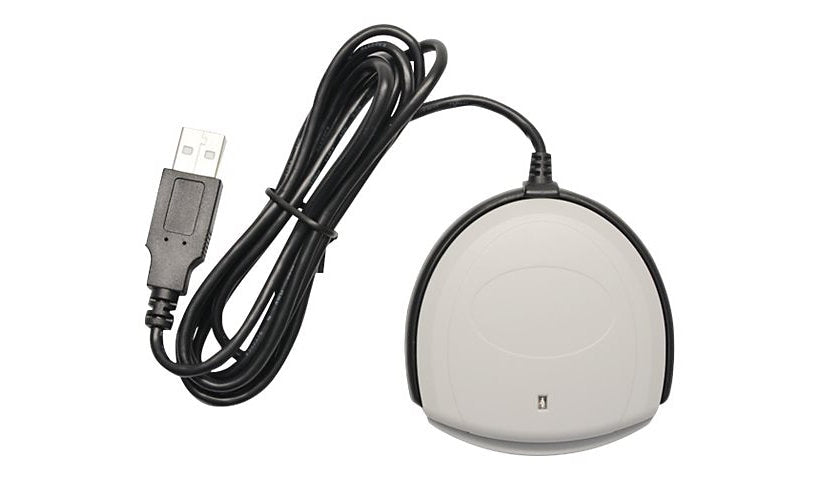

The SCM SCR3310 v2.0 is a USB contact smart card reader supporting ISO 7816, CCID, PC/SC and EMV 2000 Level 1, suited to home banking, network logon, email encryption and loyalty programs. It is USB powered with a 5 ft cable and LED indicator.
Key Features
- Contact smart card reader
- ISO 7816, CCID, PC/SC, EMV Level 1
- USB, 5 ft cable, USB powered
- Windows, macOS, Linux, Android
- LED indicator
- 100,000 hour MTBF
Product Information
Brand: SCM
Manufacturer: SCM Microsystem
Product Line: SCM
Model: SCR3310 v2.0
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Operating System Required: Android 4.0, Apple macOS 10.13.x, Apple MacOS X 10.10.x, Apple MacOS X 10.11.x, Apple MacOS X 10.9.x, Linux 2.6.x, Linux 3.x, Linux 4.x, Microsoft Windows 7 / 8 / 10 (32/64 bits), Microsoft Windows CE 6.0, Microsoft Windows CE 7.0, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016
Connectivity
Interface Type: USB
Input Adapter Type: SMART card reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Expansion Slots: 1 x Smart Card
Technical Information
Device Features: USB powered
OK Notification: LED indicator
SMART Card Reader Type: Contact
Recording Standard: ISO 7816
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
MTBF: 100,000 hour(s)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.6 inch
Width: 2.8 inch
Depth: 2.8 inch
Weight: 2.12 ounce
Included Items
Cables: 1 x USB cable - 5 ft
Certifications and Listing
Compliant Standards: FCC, GSA APL, REACH, RoHS 2, UL 60950, WEEE
