Product Information

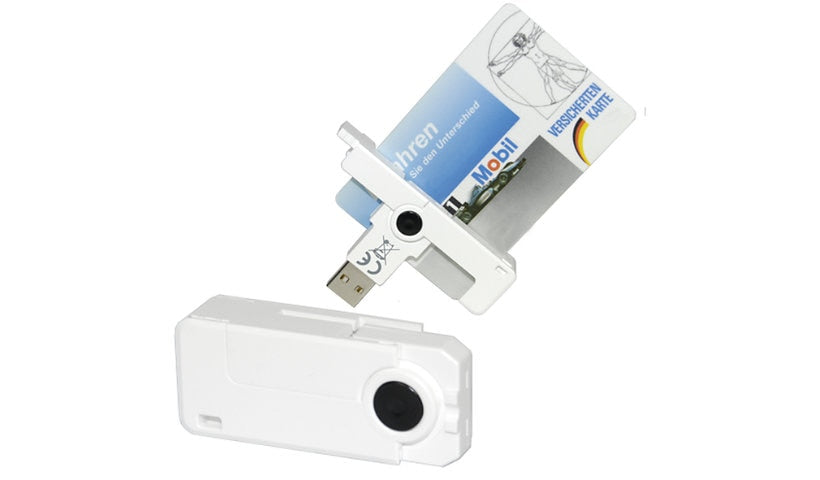

The SCM SmartFold SCR3500 A is a compact, foldable USB 2.0 contact smart card reader, fully ISO 7816 compliant for Class A, B and C cards. It suits electronic ID, secure network logon, e-banking and loyalty applications, is USB powered with an LED and rated for 100,000 card passes.
Key Features
- Contact smart card reader, foldable
- ISO 7816 Class A, B and C
- USB 2.0, USB powered
- 100,000 pass head life
- Windows, macOS, Linux, Android
- LED indicator, 500,000 hour MTBF
Product Information
Brand: SCM
Manufacturer: SCM Microsystem
Product Line: SCM SmartFold
Model: SCR3500 A
Packaged Quantity: 1
Color Category: White
Network and Communication
Operating System Required: Android 4.0 or later, Apple MacOS X 10.10.x, Apple MacOS X 10.11.x, Apple MacOS X 10.5.x, Apple MacOS X 10.6.x, Apple MacOS X 10.7.x, Apple MacOS X 10.8.x, Apple MacOS X 10.9.x, Linux 2.4.x, Linux 2.6.x, Linux 3.x, Microsoft Windows CE 6.0, Microsoft Windows CE 7.0, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows XP / Vista / 7 / 8 / 10
Connectivity
Interface Type: USB 2.0
Input Adapter Type: SMART card reader
Interface Required Connections: 1 x USB 2.0 - 4 pin USB Type A
Power
Frequency: Up to 16 MHz
Technical Information
Device Features: USB powered
OK Notification: LED indicator
SMART Card Reader Type: Contact
Head Duty Cycle (Passes): 100,000
Recording Standard: ISO 7816 Class A, ISO 7816 Class B, ISO 7816 Class C
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
MTBF: 500,000 hour(s)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.5 inch
Width: 1.9 inch
Depth: 0.8 inch
Weight: 0.42 ounce
Certifications and Listing
Compliant Standards: CCID, EMV 2011 Ver 4.3 Level 1, FCC, GSA APL, REACH, RoHS 2, UL 60950, VCCI, WEEE
ENERGY STAR Certified: No
