Product Information

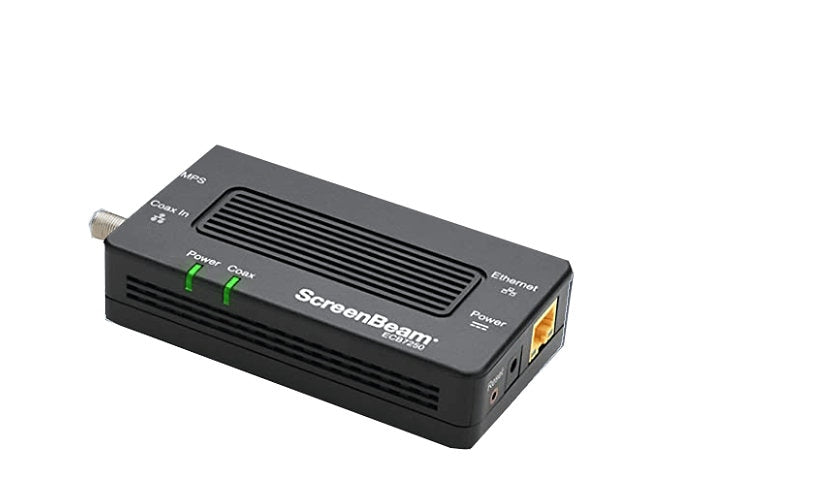

The ScreenBeam ECB7250 Bonded MoCA 2.5 adapter kit (ECB7250K02) carries home or office networking over existing coaxial cable at up to 2.5 Gbps. It is a coax to Ethernet adapter rather than a PC network card, with an F connector for the coax line and a 2.5GBase-T RJ-45 port, and is backward compatible with MoCA 2.0. It extends a wired connection beyond the main router to any room with a coax outlet, which suits 4K streaming, gaming and work from home. It runs on AC 100 to 240 V power.
Key Features
- Coax to Ethernet adapter
- MoCA 2.5, bonded
- Up to 2.5 Gbps
- 2.5GbE RJ-45 port
- F connector for coax
- MoCA 2.0 compatible
Product Information
Brand: Actiontec
Manufacturer: Actiontec Electronics
Product Line: ScreenBeam
Model: ECB7250
Product Type: Media converter
Kit: Kit
Packaged Quantity: 2
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, MoCA 2.0, MoCA 2.5
Cable Type: Ethernet 100Base-TX, Ethernet 10Base-T, Ethernet 2.5GBase-T
Data Transfer Rate: 2.5 GBps
Connectivity
Interface Provided: 1 x Ethernet 2.5GBase-T - RJ-45 female, 1 x network - F connector female
Left Connector SD Type: F connector
Right Connector Type (SD): RJ-45
Power
Required Voltage: AC 100-240 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Physical Characteristics
Form Factor: External
Certifications and Listing
Compliant Standards #2: IEEE 802.3bz, MoCA 1.0, MoCA 1.1, MoCA 2.0
Compliant Standards: cUL No.60950-1, FCC-15 (Class B), RoHS, SNE, UL
Compliant Standards: IEEE 802.3bz, MoCA 1.0, MoCA 1.1, MoCA 2.0
