Product Information

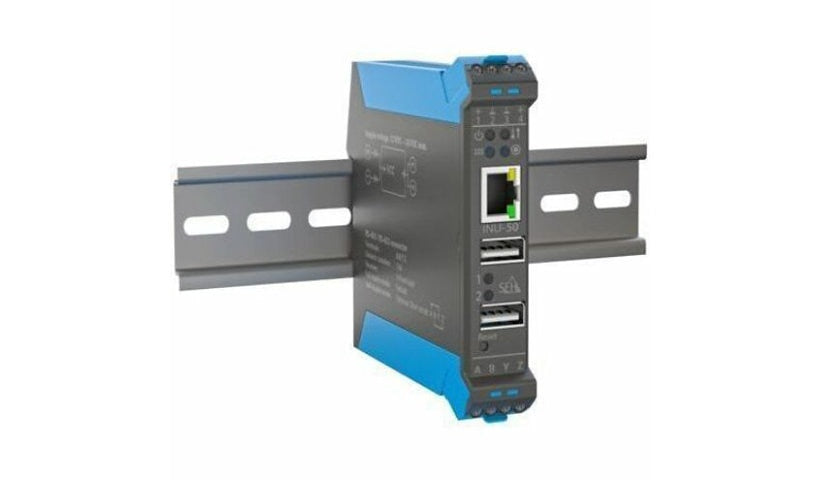

The SEH INU-50 (M07220) is an industrial device server that puts USB and RS-422/RS-485 serial devices on the network, a connectivity device rather than a tester. It has a gigabit RJ-45 port and 2 USB ports, mounts on a DIN rail, runs on 10 to 28 V DC with redundant power inputs and works from -20 to 70 °C. It offers encrypted connections for Industry 4.0 and IIoT use and is made in Germany.
Key Features
- USB and serial server
- RS-422 and RS-485
- Gigabit RJ-45, 2 USB
- DIN rail mount
- -20 to 70 °C
- Made in Germany
Product Information
Brand: SEH
Manufacturer: SEH Technology, Inc
Model: INU-50
Product Type: Device Server
Country of Origin: Germany
Network and Communication
Serial Port: Yes
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: 10/100/1000Base-T
Wireless LAN: No
Connectivity
USB Ports: 2
Network (RJ-45): Yes
Network (RJ-45) Ports: 1
USB: Yes
Power
Input Voltage: 10 V DC, 28 V DC
Technical Information
Min Operating Temperature: -4
Max Operating Temperature: 140
Physical Characteristics
Form Factor: DIN Rail Mountable
Dimensions and Weight
Height: 4.6 inch
Width: 0.9 inch
Depth: 4.5 inch
Weight: 5.29 ounce
