Product Information

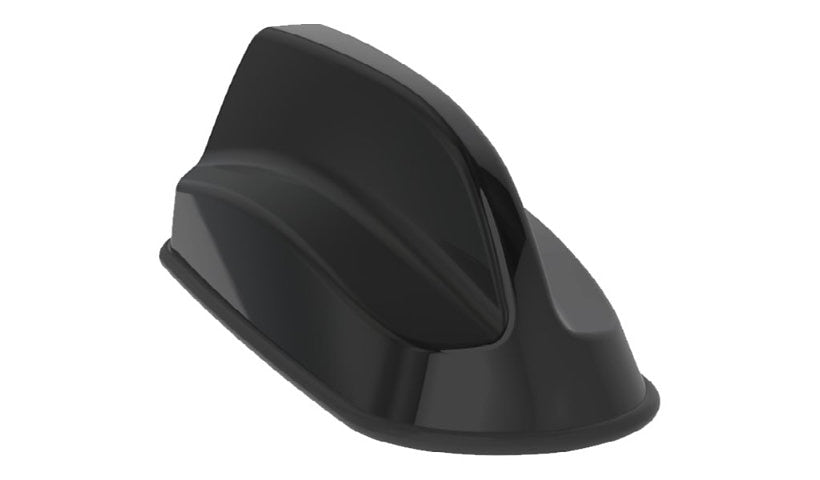

The Semtech (Sierra Wireless) 4-in-1 shark fin antenna offers 2x2 MIMO LTE, one Wi-Fi element and an active GNSS element covering 698 MHz to 6 GHz. It is IP66 rated, has two SMA cellular, one SMA GPS and one RP-SMA Wi-Fi lead on 13 ft cables, and bolt mounts in an aluminum, ASA and EPDM body.
Key Features
- Shark fin, 4-in-1
- 2x2 MIMO LTE / 3G / 4G
- Wi-Fi + active GNSS
- 4 x 13 ft cables
- IP66 rated
- Bolt mount
Product Information
Brand: Semtech
Manufacturer: Sierra Wireless
Product Line: Semtech
Model: 4-in-1
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Bolt mount
Antenna Compatibility: 3G, 4G, GNSS, GPS, LTE, Wi-Fi
Frequency Range: 1.71 - 2.17 GHz, 1559 - 1612 MHz, 2.4 GHz, 2500 - 3800 MHz, 4.9 - 6 GHz, 698 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x cellular antenna - SMA (male), GPS antenna - SMA (male), Wi-Fi antenna - RP-SMA (male)
Power
Required Voltage: DC 3 - 5 volt
Technical Information
Impedance: 50 ohm
Active Antenna: Active (GPS)
Antenna Form Type: Shark fin
Antenna Features: 2x2 MiMo, IP66, Right-hand circular polarization (RHCP), Vertical polarization
Max Power: 5 watt
Physical Characteristics
Materials: Aluminum alloy, ASA plastic, Ethylene propylene diene monomer (EPDM) rubber
Dimensions and Weight
Height: 6.8 inch
Width: 2.4 inch
Length: 1.9 inch
Weight: 32.55 ounce
Included Items
Cables: 4 x antenna cable - 13 ft
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
