Product Information

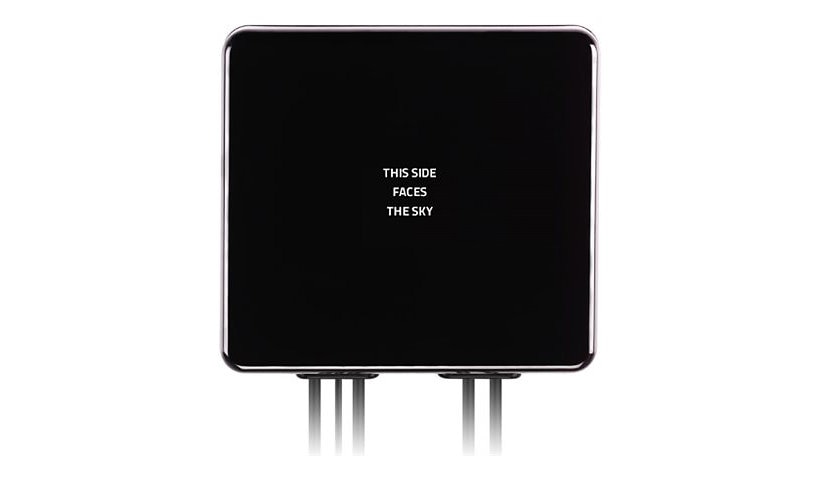

The Semtech (Sierra Wireless) 5-in-1 is a low profile flat panel antenna with 4x4 MIMO cellular for 5G and 4G plus an active GNSS element. It is IP67 rated, has four SMA cellular leads and one SMA GPS lead on 10 ft cables, and mounts with adhesive using the included foam pad.
Key Features
- 5-in-1: 4 cellular + GNSS
- 5G / 4G 4x4 MIMO
- 617 to 6000 MHz
- Active GNSS / GPS
- 5 x 10 ft cables, SMA
- IP67, adhesive mount
Product Information
Brand: Semtech
Manufacturer: Sierra Wireless
Product Line: Semtech
Model: 5-in-1
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Adhesive mount
Antenna Compatibility: 4G, 5G, GNSS, GPS
Frequency Range: 1164 - 1189 MHz, 1427 - 6000 MHz, 1559 - 1612 MHz, 617 - 6000 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 4 x cellular antenna - SMA (male), GPS antenna - SMA (male)
Power
Required Voltage: DC 1.8 - 5.5 volt
Technical Information
Impedance: 50 ohm
Active Antenna: Active (GPS)
Antenna Form Type: Flat panel
Antenna Features: 4x4 MiMo, IP67
Dimensions and Weight
Height: 0.8 inch
Width: 5.7 inch
Length: 5.4 inch
Included Items
Accessories Included: adhesive adjustment foam pad
Cables: 5 x antenna cable - 10 ft
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
