Product Information

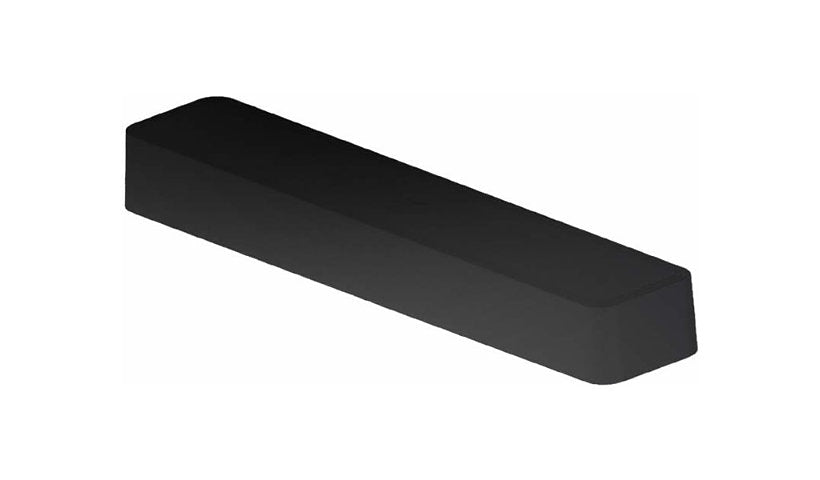

This long format Semtech (Sierra Wireless) industrial antenna with seven elements is built for the AirLink XR60 router, with four cellular elements for 4G and 5G, two Wi-Fi elements and a dual frequency L1/L5 GNSS element with LNA. It is IP69K rated, has seven leads on 6.6 ft cables (SMA and RP-SMA) and bolt mounts.
Key Features
- 7-in-1: 4 cellular, 2 Wi-Fi, GNSS
- For AirLink XR60
- Dual frequency L1/L5 GNSS
- 617 MHz to 6 GHz
- IP69K, bolt mount
- 7 x 6.6 ft cables
Product Information
Brand: Semtech
Manufacturer: Sierra Wireless
Product Line: Semtech
Model: 7-in-1
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS, GPS, Wi-Fi
Frequency Range: 1164 - 1189 MHz, 1427 - 1518 MHz, 1559 - 1610 MHz, 1710 - 4200 MHz, 2.4 - 2.5 GHz, 4.9 - 6 GHz, 4400 - 5925 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x Wi-Fi antenna - RP-SMA (male), 4 x cellular antenna - SMA (male), GPS antenna - SMA (male)
Power
Required Voltage: DC 1.8 - 5.5 volt
Technical Information
Impedance: 50 ohm
Antenna Features: IP69K, Low-noise amplifier technology, VSWR < 2:1
Dimensions and Weight
Height: 1.6 inch
Width: 2.8 inch
Length: 1 ft
Included Items
Cables: 7 x antenna cable - 6.6 ft
Warranty
Service Activation: No
