Product Information

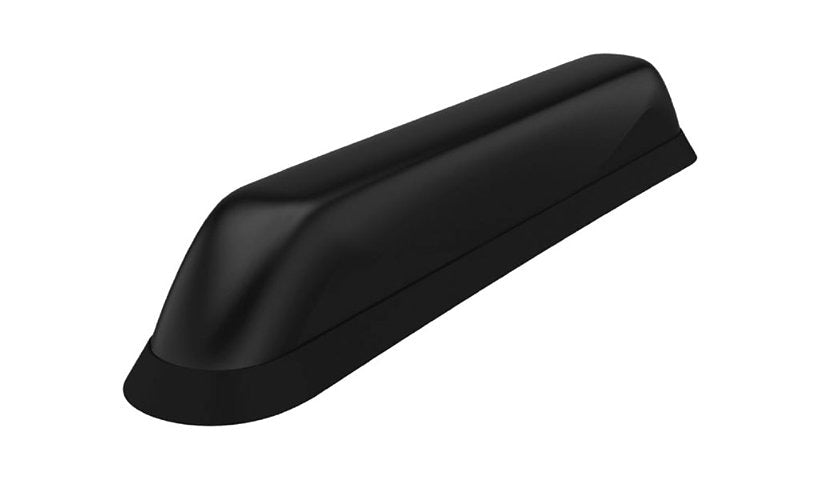

The Semtech (Sierra Wireless) 7-in-1 shark fin antenna combines 4x4 MIMO cellular for 5G and 4G, two Wi-Fi elements and an active GNSS element in a low profile, IP69K housing. It has four SMA cellular leads, two RP-SMA female Wi-Fi leads and one SMA GPS lead on 13 ft cables, and bolt mounts with the included bolt and seal.
Key Features
- Shark fin, 7-in-1
- 5G / 4G 4x4 MIMO
- 2 Wi-Fi + active GNSS
- 7 x 13 ft cables
- IP69K, low profile
- Bolt mount, seal included
Product Information
Brand: Semtech
Manufacturer: Sierra Wireless
Product Line: Semtech
Model: 7-in-1
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS, GPS, Wi-Fi
Frequency Range: 1164 - 1189 MHz, 1427 - 6000 MHz, 1559 - 1612 MHz, 2.4 - 2.5 GHz, 2.5 GHz, 5 GHz, 5.15 - 7.125 GHz, 617 - 6000 MHz, 617 - 698 MHz, 698 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x Wi-Fi antenna - RP-SMA (female), 4 x cellular antenna - SMA (male), GPS antenna - SMA (male)
Power
Required Voltage: DC 3 - 5 volt
Technical Information
Impedance: 50 ohm
Active Antenna: Active (GPS)
Antenna Form Type: Shark fin
Antenna Features: 4x4 MiMo, IP69K, Low profile
Dimensions and Weight
Height: 2 inch
Width: 2.4 inch
Length: 1.2 ft
Included Items
Accessories Included: mounting bolt, seal
Cables: 7 x antenna cable - 13 ft
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
