Product Information

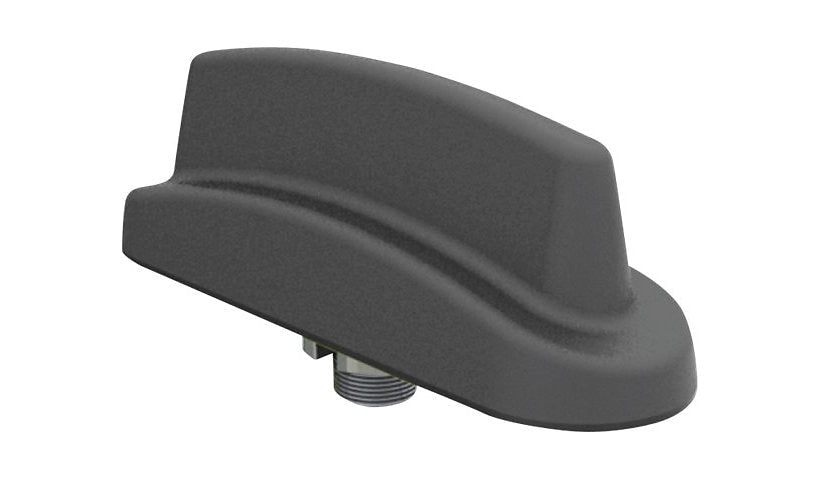

This Sierra Wireless AirLink dual element panel provides 2x2 MIMO LTE for AirLink routers and gateways in a compact, weatherproof, ground plane independent housing. It covers 698 to 960 and 1710 to 3800 MHz with up to 5 dBi gain, and has two SMA plugs on 3.3 ft cables.
Key Features
- 2-in-1 LTE MIMO panel
- 698 to 3800 MHz
- 1.5 to 5 dBi gain
- 2 x SMA plug
- 3.3 ft cables
- -22 to 158 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: 2-in-1 Panel
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 1.5 dBi (for 698 - 960 MHz), 4.5 dBi (for 1.71 - 2.7 GHz), 5 dBi (for 2.5 - 3.8 GHz)
Antenna Compatibility: LTE
Frequency Range: 1710 - 3800 MHz, 698 - 960 MHz
Signaling Type: Cellular
Directivity: Omni-directional
Features: Low-profile, MIMO Technology, Robust construction, Weatherproof
Connectivity
Antenna Cable Length: 3.3 ft
Connector Provided: 2 x SMA plug
Technical Information
Impedance: 50 ohm
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA)
Dimensions and Weight
Height: 1.9 inch
Width: 5.9 inch
Depth: 1.8 inch
Weight: 7.16 ounce
Warranty
Service Activation: No
