Product Information

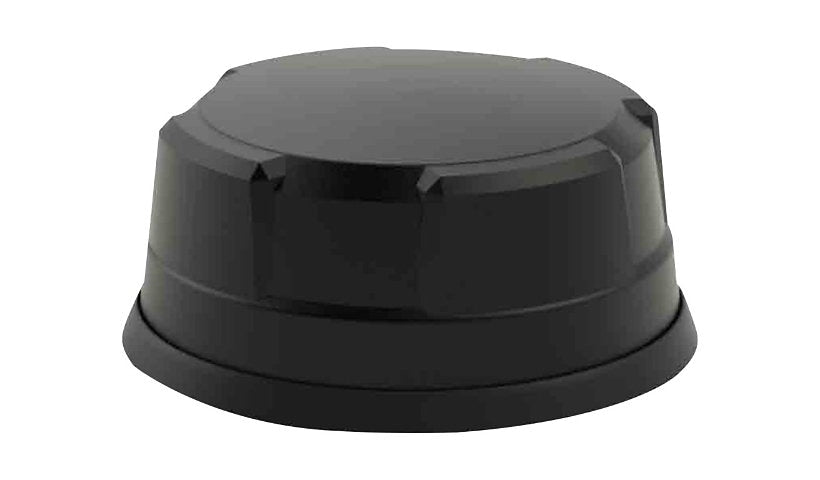

This Sierra Wireless AirLink dome with five elements is a low profile, IP69K rated antenna certified for mobile use, with five isolated elements for cellular, Wi-Fi and GNSS. Gain runs up to 9 dBi, it uses SMA and RP-SMA connectors on 16.4 ft cables and bolt mounts. It is listed for the AirLink RV55.
Key Features
- 5-in-1: cellular, Wi-Fi, GNSS
- 698 MHz to 6 GHz
- Up to 9 dBi gain
- SMA / RP-SMA, 16.4 ft cables
- IP69K, bolt mount
- For AirLink RV55
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: 5-in-1 Dome
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 4 dBi (for 617 - 960 MHz), 8 dBi (for 1710 - 3800 MHz), 9 dBi (for 2.4 GHz), 9 dBi (for 4.9 - 6 GHz)
Antenna Placement: Bolt mount
Antenna Compatibility: 3G, 4G, GNSS, GPS, Wi-Fi
Frequency Range: 1.71 - 2.17 GHz, 1562 - 1612 MHz, 2.4 GHz, 4.9 - 6 GHz, 698 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - RP-SMA, Antenna - SMA
Technical Information
Impedance: 50 ohm
Antenna Features: IP69K, Low profile, VSWR < 2.1
Dimensions and Weight
Height: 3.1 inch
Width: 7.1 inch
Depth: 7.1 inch
Included Items
Cables: Antenna cable - 16.4 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
