Product Information

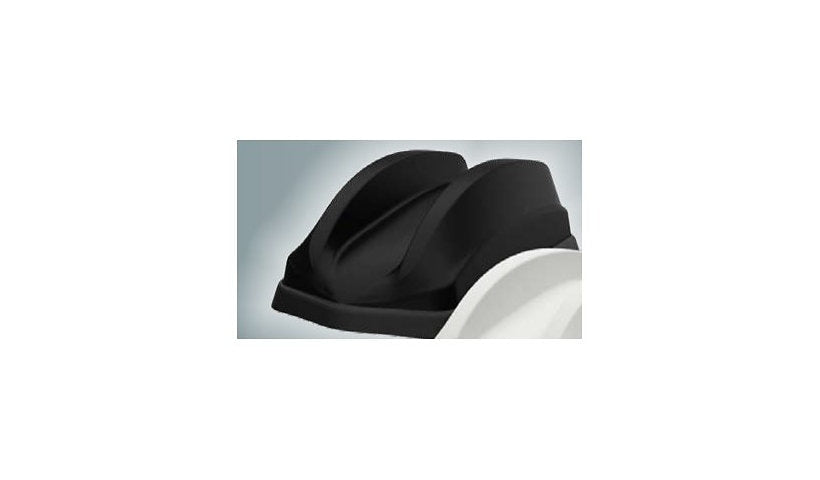

The Sierra Wireless 9-in-1 dual shark fin antenna combines 4G and 5G cellular, Wi-Fi and GNSS elements in one IP69K housing. It uses FAKRA D (cellular), C (GPS) and I (Wi-Fi) connectors on 13 ft cables, bolt mounts, and includes a center sealing pad, extension cables, foam pad and mounting bolt.
Key Features
- 9-in-1: cellular, Wi-Fi, GNSS
- 617 MHz to 6 GHz
- FAKRA C / D / I connectors
- 13 ft cables
- IP69K, bolt mount
- Seal pad, extension cables included
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless
Model: 9-in-1
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS, GPS, Wi-Fi
Frequency Range: 1427 - 6000 MHz, 1562 - 1612 MHz, 2.4 GHz, 5 - 6 GHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Cellular antenna - FAKRA D connector, GPS antenna - FAKRA C connector, Wi-Fi antenna - FAKRA I connector
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dual shark fin
Antenna Features: IP69K, VSWR < 2.1
Dimensions and Weight
Height: 3.2 inch
Width: 5.6 inch
Depth: 10 inch
Included Items
Accessories Included: centre sealing pad, extension cables, foam pad, mounting bolt
Cables: Antenna cable - 13 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
