Product Information

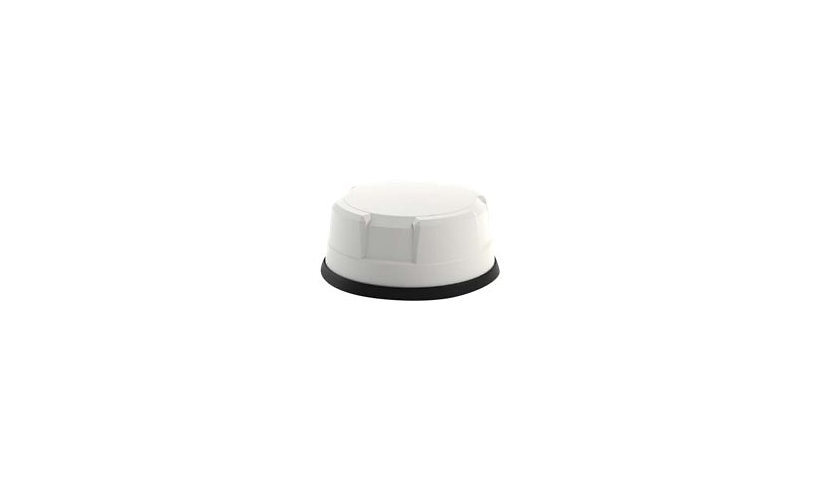

This Sierra Wireless five element 5G dome serves the second radio of the AirLink XR80 and XR90, certified for mobile and fixed use. It has four ultra wideband cellular elements (617 to 6000 MHz) and a GNSS element in a low profile IP69K housing, with FAKRA and RP-SMA connectors on 16.4 ft cables and a bolt mount.
Key Features
- 5-in-1: 4 cellular + GNSS
- For AirLink XR80 / XR90
- 617 to 6000 MHz
- FAKRA / RP-SMA, 16.4 ft cables
- IP69K, low profile
- Bolt mount, white
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless
Model: 5-in-1 Dome 5G
Compatibility Specs: Sierra Wireless AirLink XR80
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS
Frequency Range: 1562 - 1612 MHz, 1710 - 6000 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - FAKRA D connector, GPS antenna - FAKRA C connector (male), Wi-Fi antenna - RP-SMA (plug)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Antenna Features: IP69K, Low profile, MIMO technology, VSWR < 2.1
Dimensions and Weight
Height: 3.1 inch
Width: 7.1 inch
Depth: 7.1 inch
Included Items
Cables: Antenna cable - 16.4 ft
Warranty
Service Activation: No
