Product Information

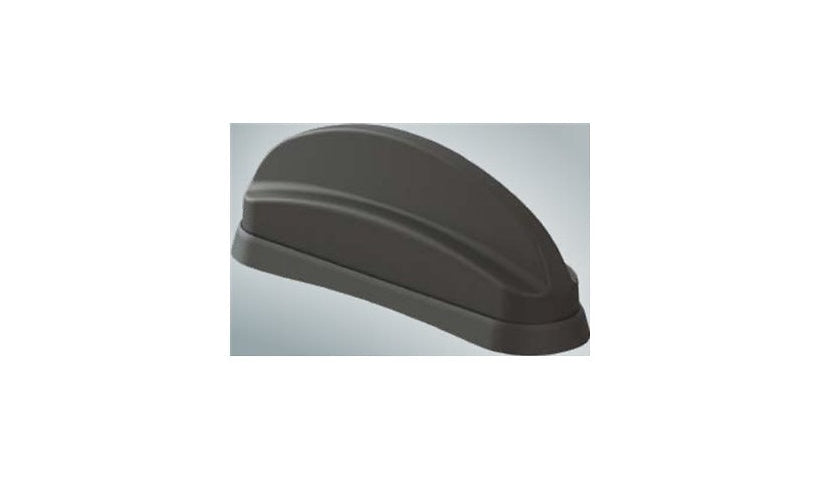

This Sierra Wireless 3-in-1 antenna has two cellular elements for 3G and 4G (617 to 6000 MHz) and a right hand circular polarized GNSS element, in an IP69K housing. It has three SMA leads on 6.6 ft cables and bolt or panel mounts.
Key Features
- 2 cellular + GNSS
- 617 to 6000 MHz
- RHCP GNSS element
- 3 x SMA, 6.6 ft cables
- IP69K rated
- Bolt or panel mount
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Bolt mount, Panel mountable
Antenna Compatibility: 3G, 4G, GNSS
Frequency Range: 1427 - 6000 MHz, 1562 - 1612 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 1 x GPS antenna - SMA, 2 x antenna - SMA
Technical Information
Impedance: 50 ohm
Antenna Features: IP69K, Right-hand circular polarization (RHCP)
Max Power: 10 watt
Dimensions and Weight
Height: 3.5 inch
Width: 2.5 inch
Depth: 9.4 inch
Included Items
Cables: 3 x antenna cable - 6.6 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
