Product Information

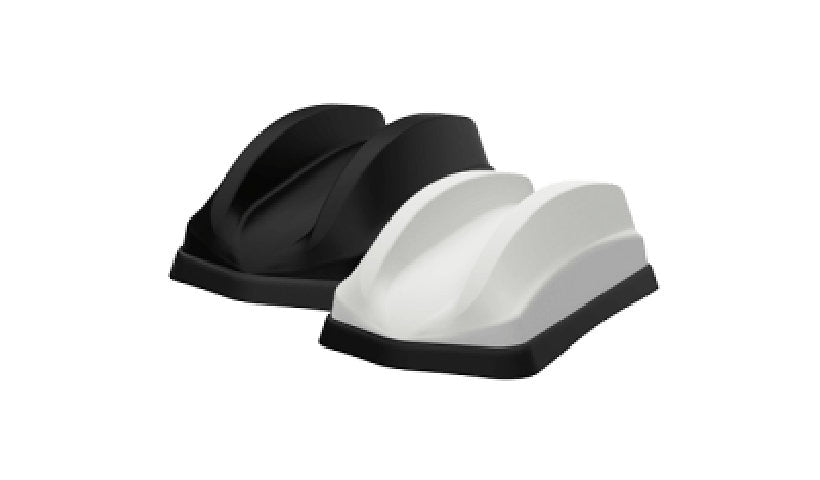

This Sierra Wireless 5-in-1 dual shark fin antenna is made for the AirLink XR60 router, with 4x4 MIMO for 4G and 5G and an active GNSS element. Gain is 4.2 dBi at 617 to 960 MHz and 7.1 dBi at 1427 to 6000 MHz, with five SMA male connectors and a bolt mount rated -40 to 176 °F. The listed cable length (1.6 in) looks wrong, so please confirm.
Key Features
- Dual shark fin, 5-in-1
- For AirLink XR60
- 4x4 MIMO 4G / 5G + GNSS
- 4.2 / 7.1 dBi gain
- 5 x SMA male
- Bolt mount, -40 to 176 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 4.2 dBi (for 617 - 960 MHz), 7.1 dBi (for 1427 - 6000 MHz)
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS, GPS
Frequency Range: 1427 - 6000 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation
Directivity: Omni-directional
Features: 4x4 MiMo function
Connectivity
Antenna Cable Length: 1.6 inch
Connector Provided: 5 x SMA male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dual shark fin
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Dimensions and Weight
Height: 3.2 inch
Width: 5.6 inch
Depth: 10 inch
Certifications and Listing
Compliant Standards: IP69K, UN ECE R118
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
