Product Information

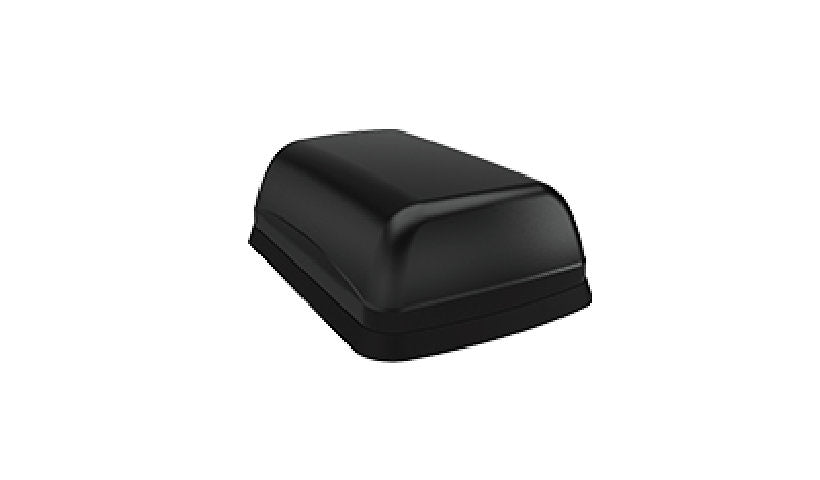

This Sierra Wireless 7-in-1 industrial dome antenna is made for the AirLink XR60 router, with 4x4 MIMO for 4G and 5G from 617 to 4200 MHz and an active GNSS element. Gain is 1.9 dBi low band and 6.3 dBi high band, with seven SMA male connectors on 6.6 ft cables and a bolt mount rated -40 to 185 °F.
Key Features
- 7-in-1 industrial dome
- For AirLink XR60
- 4x4 MIMO 4G / 5G, 617 to 4200 MHz
- Active GNSS
- 7 x SMA male, 6.6 ft cables
- Bolt mount, -40 to 185 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 1.9 dBi (for 617 - 960 MHz), 6.3 dBi (for 1427 - 4200 MHz)
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS, GPS
Frequency Range: 1427 - 4200 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation
Directivity: Omni-directional
Features: 4x4 MiMo function
Connectivity
Antenna Cable Length: 6.6 ft
Connector Provided: 7 x SMA male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Dimensions and Weight
Height: 2.2 inch
Width: 6.9 inch
Depth: 4.6 inch
Certifications and Listing
Compliant Standards: IP69K, UN ECE R118
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
