Product Information

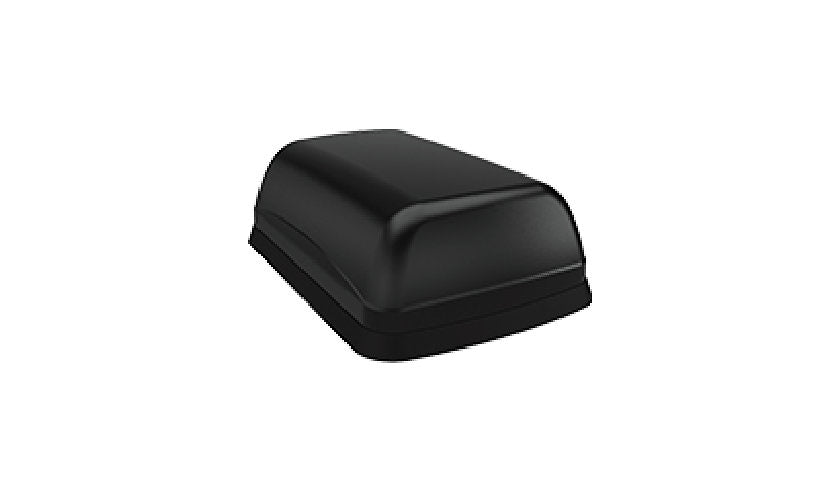

This Sierra Wireless 5-in-1 industrial dome antenna is made for the AirLink XR60, with four 5G and LTE elements from 617 to 4200 MHz and an active L1/L5 GNSS element. Gain is 1.9 dBi low band and 6.3 dBi high band, with five SMA male connectors on 6.6 ft cables and a bolt mount rated -40 to 185 °F.
Key Features
- 5-in-1 industrial dome
- For AirLink XR60
- 4 x 5G / LTE + GNSS
- 617 to 4200 MHz
- 5 x SMA male, 6.6 ft cables
- Bolt mount, -40 to 185 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 1.9 dBi (for 617 - 960 MHz), 6.3 dBi (for 1427 - 4200 MHz)
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS, GPS
Frequency Range: 1427 - 4200 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation
Directivity: Omni-directional
Features: 4x4 MiMo function
Connectivity
Antenna Cable Length: 6.6 ft
Connector Provided: 5 x SMA male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Dimensions and Weight
Height: 2.2 inch
Width: 6.9 inch
Depth: 4.6 inch
Certifications and Listing
Compliant Standards: IP69K, UN ECE R118
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
