Product Information

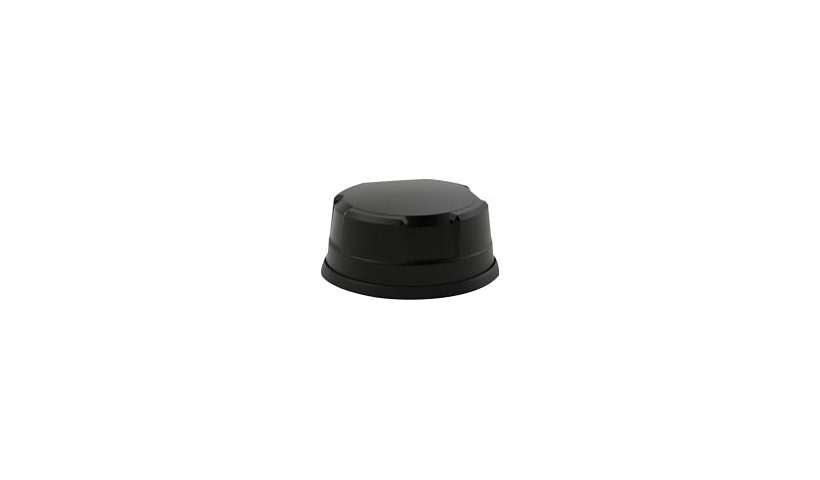

The Sierra Wireless AirLink 10-in-1 dome is a 5G antenna made for the AirLink XR80, certified for mobile and fixed use, with ten isolated elements covering cellular, Wi-Fi and GNSS. It uses FAKRA connectors on 16.4 ft cables, has gains up to 7 dBi and bolt mounts, rated -40 to 176 °F.
Key Features
- 10-in-1: cellular, Wi-Fi, GNSS
- For AirLink XR80
- 617 to 6000 MHz
- FAKRA connectors, 16.4 ft cables
- Up to 7 dBi gain
- Bolt mount, -40 to 176 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 4 dBi (for 617 - 960 MHz), 5 dBi (for 2.4 GHz), 6 dBi (for 1.71 - 3.8 GHz), 6 dBi (for 4.9 - 6 GHz), 7 dBi (for 4.9 - 6 GHz)
Antenna Placement: Bolt mount
Antenna Compatibility: 4G, 5G, GNSS, Wi-Fi
Frequency Range: 1562 - 1612 MHz, 1710 - 3800 MHz, 2.4 GHz, 4.9 - 6 GHz, 4900 - 6000 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Directivity: Omni-directional
Connectivity
Antenna Cable Length: 16.4 ft
Connector Provided: FAKRA C connector, FAKRA D connector, FAKRA I connector
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Dimensions and Weight
Height: 3.1 inch
Width: 7.1 inch
Depth: 7.1 inch
Certifications and Listing
Compliant Standards: IP69K
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
