Product Information

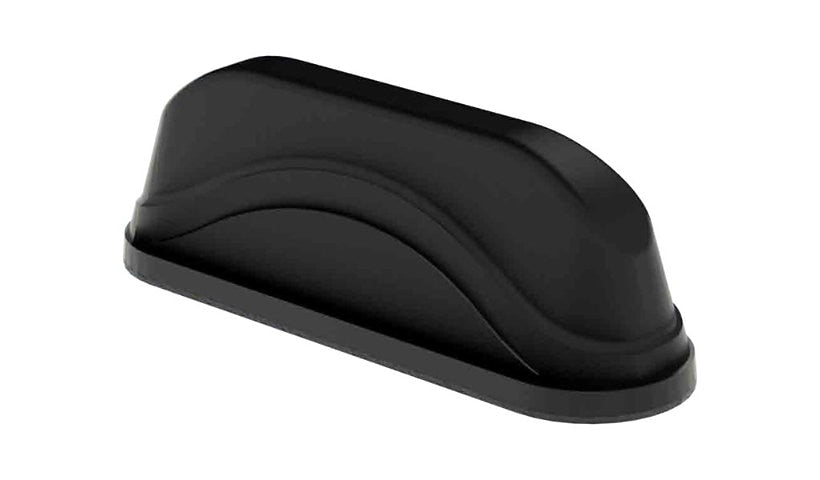

The Sierra Wireless AirLink 4-in-1 panel antenna is a low profile, weatherproof IP66 shark fin with two LTE MIMO elements, an active GNSS element and a Wi-Fi element, certified for AirLink routers. It covers 698 to 960 MHz, 1710 to 3800 MHz, 2.4 GHz and 5 GHz, bolts into place and includes a 6.6 ft cable. It is an antenna, not a router.
Key Features
- 2 x LTE MIMO, GNSS and Wi-Fi elements
- 698 to 960 and 1710 to 3800 MHz, 2.4 and 5 GHz
- IP66, shark fin, bolt mount
- 2 to 6 dBi gain by band
- SMA and RP-SMA, 6.6 ft cable
- Antenna, not a router
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: 4-in-1 Panel
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi (for 698 - 960 MHz), 4 dBi (for 2.4 GHz), 5 dBi (for 1.71 - 3.8 GHz), 6 dBi (for 5 GHz)
Antenna Placement: Bolt mount
Antenna Compatibility: 3G, 4G, GNSS, GPS, LTE, Wi-Fi
Frequency Range: 1562 - 1612 MHz, 1710 - 3800 MHz, 2.4 GHz, 4.9 - 6 GHz, 5 GHz, 698 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Integrated Graphics: Antenna - RP-SMA, Antenna - SMA
Technical Information
Impedance: 50 ohm
Antenna Form Type: Shark fin
Antenna Features: IP66, MiMo LTE, Right-hand circular polarization (RHCP), VSWR < 2.1
Max Power: 25 watt
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA)
Dimensions and Weight
Antenna Length: 5.9 inch
Height: 2 inch
Width: 1.7 inch
Length: 5.9 inch
Included Items
Cables: Antenna cable - 6.6 ft
Warranty
Service Activation: No
