Product Information

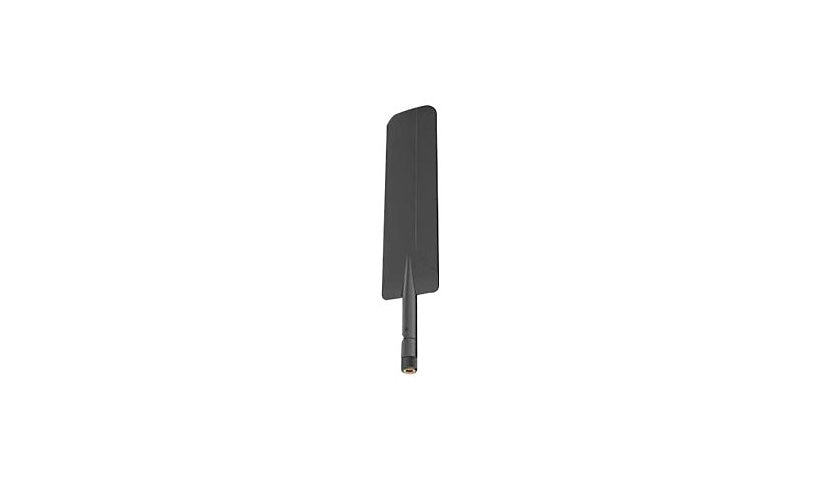

This Sierra Wireless AirLink 5G paddle style omni antenna needs no ground plane and covers 3G, 4G and 5G NR from 615 to 6000 MHz with 2 dBi gain. It has an articulating SMA plug that pivots 0 to 90°, a 9.1 in ABS body and a -40 to 158 °F range.
Key Features
- 3G / 4G / 5G NR
- 615 to 6000 MHz
- 2 dBi omni
- Articulating SMA, 0 to 90°
- About 9.1 in tall
- -40 to 158 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi
Antenna Compatibility: 3G, 4G, 5G
Frequency Range: 1710 - 6000 MHz, 615 - 960 MHz
Signaling Type: Cellular
Directivity: Omni-directional
Features: Vertical polarisation
Connectivity
Connector Provided: 1 x SMA plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Ground-plane
Voltage Standing Wave Ratio (VSWR): 2.5:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 9.1 inch
Width: 2 inch
Depth: 0.5 inch
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
