Product Information

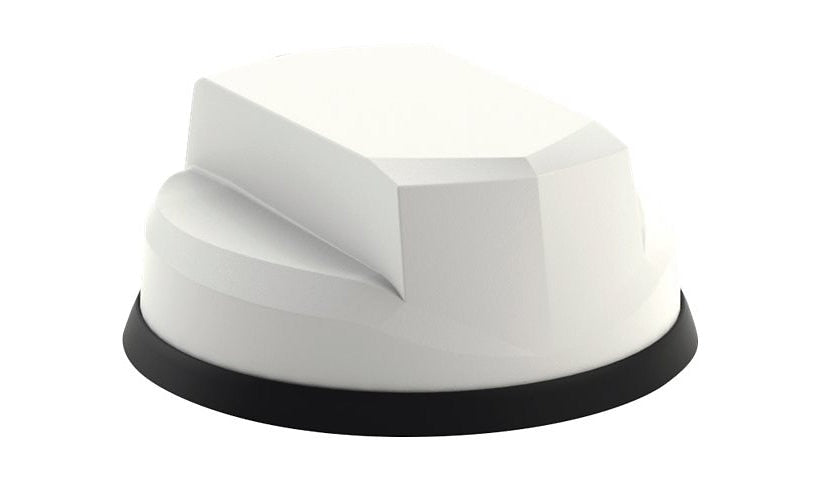

The Sierra Wireless AirLink 6-in-1 dome is certified for AirLink LTE routers and gateways, packing six isolated elements for 5G NR and LTE MIMO, Wi-Fi and GNSS into one low profile housing. Gain reaches up to 10 dBi at 4.9 to 6 GHz, cables run 16.4 ft, and it bolt mounts in an ASA and aluminum body rated -40 to 176 °F.
Key Features
- 6-in-1: cellular, Wi-Fi, GNSS
- 617 to 6000 MHz
- Up to 10 dBi gain
- SMA and RP-SMA, 16.4 ft cables
- Bolt mount
- -40 to 176 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: 6-in-1
Category of Accessory: Antennas
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Gain: 10 dBi (for 4.9 - 6 GHz), 5 dbi (for 617 - 960 MHz), 8 dBi (for 2.4 GHz), 9 dBi (for 1.71 - 3.8 GHz)
Antenna Placement: Bolt mount
Antenna Compatibility: 5G, GNSS, LTE, Wi-Fi
Frequency Range: 1562 - 1612 MHz, 1710 - 6000 MHz, 2.4 GHz, 4.9 - 6 GHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Features: 3x3 MiMo function, Vertical polarisation
Connectivity
Antenna Cable Length: 16.4 ft
Connector Provided: 1 x RP-SMA, 2 x SMA
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA), Aluminum alloy
Dimensions and Weight
Height: 3 inch
Width: 7.1 inch
Depth: 7.1 inch
Certifications and Listing
Compliant Standards: IP69K
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
