Product Information

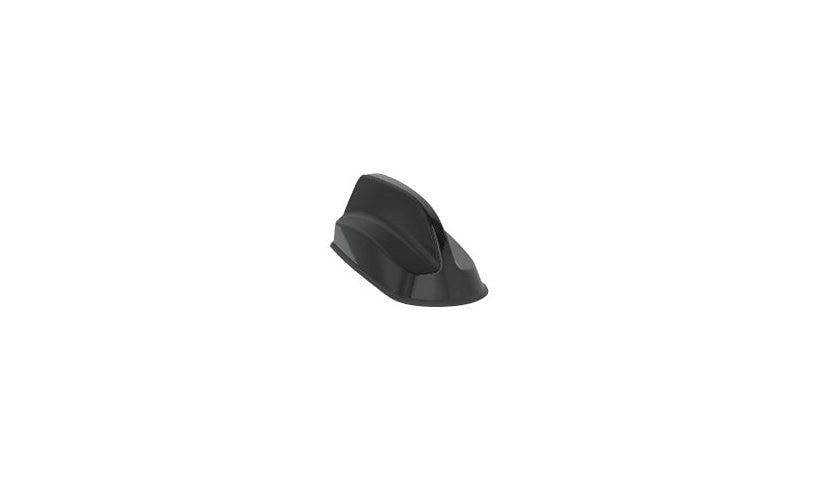

The Sierra Wireless AirLink 3-in-1 SharkFin holds a 2x2 MIMO cellular pair (2G, 3G, LTE) plus an active GNSS element with 26 dB LNA in a compact OEM style body. It has 13 ft cables, 2 to 5 dBi cellular gain and a -40 to 176 °F range. The spec lists two SMA plugs for a 3-in-1 antenna, so please confirm.
Key Features
- 2x2 LTE MIMO + GNSS
- 698 to 3800 MHz
- 2 / 5 dBi cellular
- Active GNSS, 26 dB LNA
- 13 ft cables
- -40 to 176 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: Antenna: 3-in-1 SharkFin
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi (for 698 - 960 MHz), 5 dBi (for 1710 - 3800 MHz)
Antenna Compatibility: 2G, 3G, 4G, GPS
Frequency Range: 1.71 - 2.17 GHz, 2500 - 3800 MHz, 698 - 960 MHz
Signaling Type: Cellular, Navigation
Directivity: Omni-directional
Connectivity
Antenna Cable Length: 13 ft
Connector Provided: 2 x SMA plug
Technical Information
Impedance: 50 ohm
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Dimensions and Weight
Height: 2 inch
Width: 2.4 inch
Depth: 6.7 inch
Weight: 32.2 ounce
Warranty
Service Activation: No
