Product Information

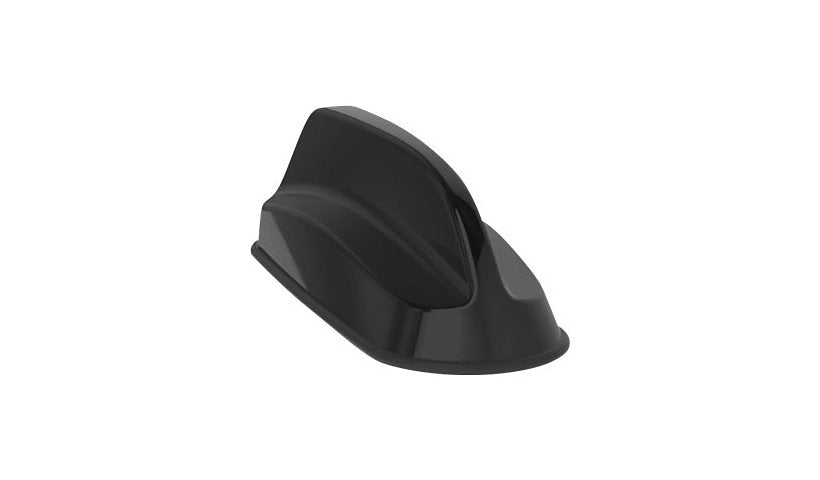

The Sierra Wireless AirLink 6-in-1 SharkFin is certified for AirLink routers and gateways, combining 2x2 MIMO LTE, a GNSS element (26 dB LNA) and 3x3 MIMO Wi-Fi on 2.4 and 5 GHz in a compact OEM style housing. It uses SMA and RP-SMA plugs on 13 ft cables and is rated -40 to 176 °F.
Key Features
- 6-in-1: 2 LTE, 3 Wi-Fi, GNSS
- 2x2 LTE + 3x3 Wi-Fi MIMO
- Active GNSS, 26 dB LNA
- SMA / RP-SMA, 13 ft cables
- -40 to 176 °F
- White housing
Product Information
Stylus Type: Antenna
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: Antenna: 6-in-1 SharkFin
Category of Accessory: Antennas
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Gain: 2 dBi (for 698 - 960 MHz), 26 dBi (GNSS), 4 dBi (for 2.4 GHz), 5 dBi (for 1710 - 3800 MHz), 6 dBi (for 5 GHz)
Antenna Compatibility: 2G, 3G, 4G, GPS, LTE, Wi-Fi
Frequency Range: 1.71 - 2.17 GHz, 1562 - 1612 MHz, 2.4 GHz, 2500 - 3800 MHz, 5 GHz, 698 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Directivity: Omni-directional
Features: IP66 protection
Connectivity
Antenna Cable Length: 13 ft
Connector Provided: RP-SMA plug, SMA plug
Technical Information
Impedance: 50 ohm
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Physical Characteristics
Materials: Acrylonitrile styrene acrylate (ASA), Aluminum alloy, Ethylene propylene rubber (EPDM)
Dimensions and Weight
Height: 4.6 inch
Width: 2.4 inch
Depth: 6.7 inch
Weight: 2.83 lbs
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
