Product Information

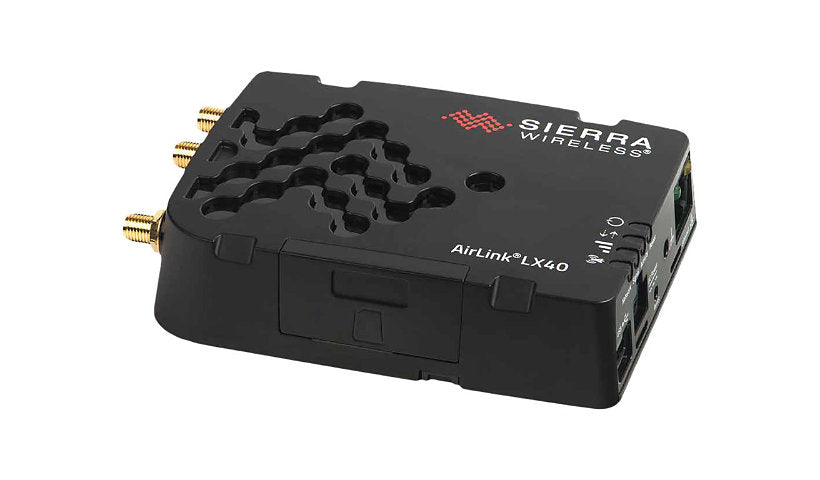

The Sierra Wireless AirLink LX40 is a compact LTE router for IoT and M2M work such as cameras, POS terminals, security systems and smart lockers. This model adds dual band Wi-Fi 5 Wave 2 for up to 10 clients, a Gigabit LAN port and 5 VPN tunnels, and comes with the first year of AirLink Complete. It is listed for AT&T and Verizon Wireless and carries a 3 year limited warranty.
Key Features
- LTE up to 150 Mbps, AT&T and Verizon Wireless listed
- Wi-Fi 5 Wave 2 dual band, up to 10 wireless clients
- 1 x GbE LAN, Micro USB
- IPsec VPN, GRE, VRRP, VLAN
- 1st year AirLink Complete included
- 3 year limited warranty
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: LX40
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Service Provider: AT&T, Verizon Wireless
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, IPSec, PPPoE
Remote Management: CLI, SNMP, SSH, Telnet
Routing Protocol: Policy-based routing (PBR), Static IP routing, VRRP
Authentication Method: LDAP, RADIUS, TACACS+
Encryption: WPA2-Enterprise
Modem Transmission Data Rate: 150 MBps
Capacity: Concurrent VPN tunnels: 5, Wireless clients: 10
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: GPRS, GSM, HSPA+, LTE, WCDMA
Key Features: USB port, VPN support
Features: Access Point operational mode, Captive Portal, Dead Peer Detection (DPD), DHCP server, DMZ support, Dynamic DNS server, Firmware upgradable, GRE tunneling, IPv6 support, MAC address filtering, Port filtering, Port forwarding, VLAN support, Wireless Client Mode
Bundled Services: 1st year AirLink Complete
Connectivity
Interface Provided: Antenna: 1 x RP-SMA, Antenna: 2 x SMA, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 2.0: 1 x 5 pin Micro-USB Type B
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1 inch
Width: 4.4 inch
Depth: 3.1 inch
Certifications and Listing
Compliant Standards: E Mark, FCC, IC, IECEE CB, IP21, ISO 7637-2, MIL-STD 810G, PTCRB, REACH, RoHS 2, SAE J1455, UL 60950, WEEE
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
