Product Information

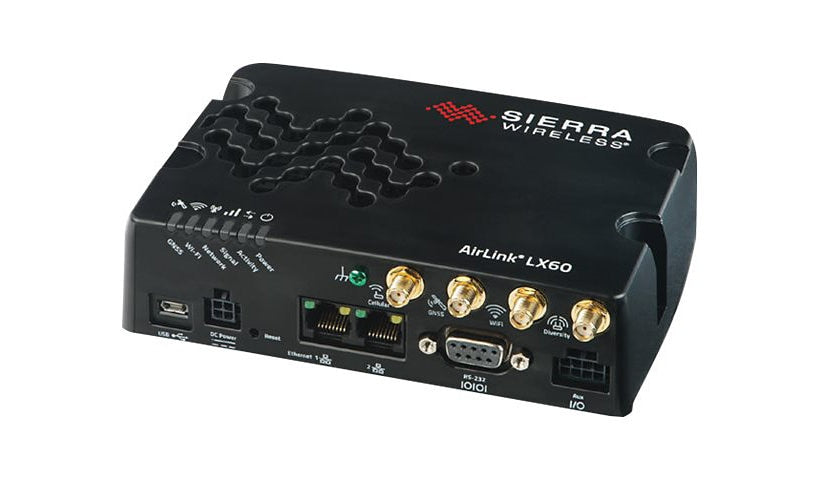

The Sierra Wireless AirLink LX60 is a managed cellular router used in building automation, point of sale, ATMs, kiosks, signage and taxis. This model adds dual band Wi-Fi 5, two Gigabit LAN ports, RS-232 and RS-485 serial, Modbus and GNSS, and carries a 3 year limited warranty. The description says LTE, while the cellular field lists HSPA+ and WCDMA, so please confirm.
Key Features
- Cellular modem up to 150 Mbps
- Wi-Fi 5 dual band
- 2 x GbE LAN, RS-232 DB-9, RS-485, Micro USB
- Modbus, VRRP, GRE, IPsec VPN
- GPS, GLONASS, Galileo, BeiDou
- 3 year limited warranty
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: LX60
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, PPP
Network Standard: DDNS, DHCP, IPSec, IPv6, PPPoE, TCP/IP, UDP/IP
Remote Management: HTTP, Modbus, SNMP, SSH, Telnet
Routing Protocol: GRE, Policy-based routing (PBR), Static IP routing, VRRP
Authentication Method: LDAP, Radio Service Set ID (SSID), RADIUS, TACACS+
Encryption: WPA2-Enterprise
Modem Transmission Data Rate: 150 MBps
Capacity: Concurrent VPN tunnels: 5
Wireless LAN: 802.11a/b/g/n/ac
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: HSPA+, WCDMA
Key Features: VPN support
Features: Captive Portal, Dead Peer Detection (DPD), DHCP server, DMZ support, E-mail alert, Firmware upgradable, IPSec Virtual Private Network (VPN), IPv6 support, LDAP support, MAC address filtering, Modbus compatible, NAT support, Policy based routing, Port filtering, Port forwarding, SMS alert, SMS remote control, SNMP trap, Store and forward, Virtual Route Redundancy Protocol (VRRP) support, VLAN support
Connectivity
Interface Provided: Antenna: 1 x RP-SMA, Antenna: 3 x SMA, LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), Serial: 1 x RS-485, USB 2.0: 1 x 5 pin Micro-USB Type B
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: Beidou, Galileo, GLONASS, GNSS receiver, GPS
Dimensions and Weight
Height: 1.7 inch
Width: 5.7 inch
Depth: 4.2 inch
Weight: 8.82 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards: CB, FCC, IC, IECEE CB, IP20, ISO 7637-2, MIL-STD 810G, PTCRB, REACH, RoHS 2, SAE J1455, UL 60950, WEEE
Compliant Standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
