Product Information
The Sierra Wireless AirLink LX60 handles LTE plus LTE-M / NB-IoT links in commercial and enterprise IoT settings, serving as a primary or backup cellular link. It provides two Gigabit LAN ports, RS-232 and RS-485 serial, Modbus support and IPsec VPN, and is listed for AT&T and Verizon Wireless. It carries a 3 year limited warranty.
Key Features
- LTE and LTE-M / NB-IoT, up to 150 Mbps

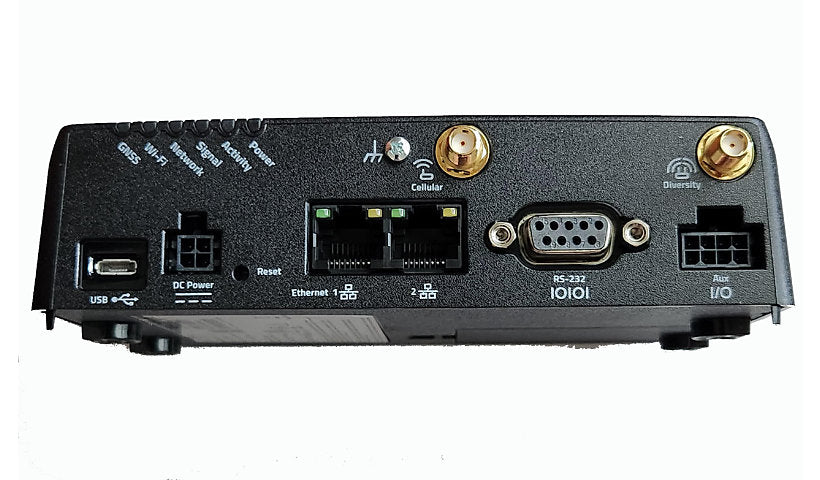

- 2 x GbE RJ-45, RS-232 DB-9, RS-485, Micro USB
- Modbus, SNMP, SSH, VRRP, GRE
- IPsec VPN with 5 tunnels, RADIUS, TACACS+, LDAP
- AT&T and Verizon Wireless listed
- 3 year limited warranty
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: LX60
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Service Provider: AT&T, Verizon Wireless
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DDNS, DHCP, IPSec, IPv6, PPPoE, TCP/IP, UDP/IP
Remote Management: HTTP, Modbus, SNMP, SSH, Telnet
Routing Protocol: GRE, Policy-based routing (PBR), Static IP routing, VRRP
Authentication Method: LDAP, RADIUS, TACACS+
Modem Transmission Data Rate: 150 MBps
Capacity: Concurrent VPN tunnels: 5
Cellular Data Connectivity Technology: LTE
Key Features: VPN support
Features: Captive Portal, Dead Peer Detection (DPD), DHCP server, DMZ support, E-mail alert, Firmware upgradable, IPSec Virtual Private Network (VPN), IPv6 support, LDAP support, MAC address filtering, Modbus compatible, NAT support, Policy based routing, Port filtering, Port forwarding, SMS alert, SMS remote control, SNMP trap, Store and forward, Virtual Route Redundancy Protocol (VRRP) support, VLAN support
Connectivity
Interface Provided: Antenna: 2 x SMA, LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), Serial: 1 x RS-485, USB 2.0: 1 x 5 pin Micro-USB Type B
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1.7 inch
Width: 5.7 inch
Depth: 4.2 inch
Weight: 8.82 ounce
Certifications and Listing
Compliant Standards: CB, FCC, IC, IECEE CB, IP20, ISO 7637-2, MIL-STD 810G, PTCRB, REACH, RoHS 2, SAE J1455, UL 60950, WEEE
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
