Product Information

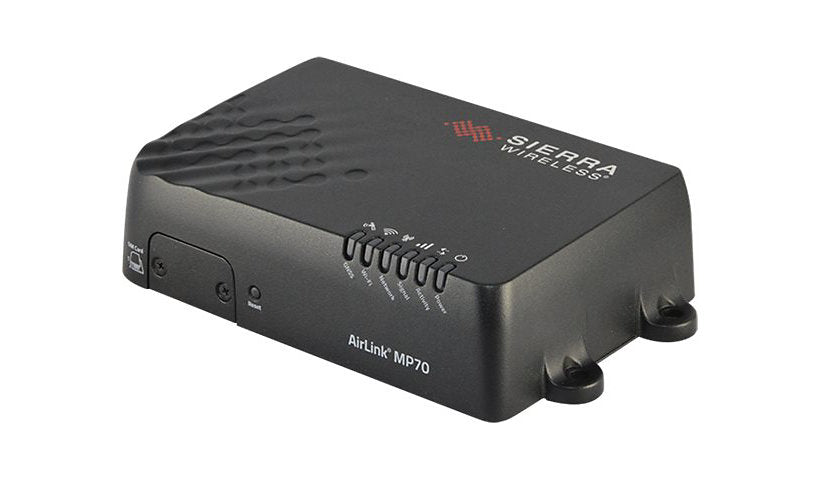

The Sierra Wireless AirLink MP70 is a high performance LTE Advanced vehicle router for public safety, transit and field services. It provides long range 3x3 Wi-Fi 5 for up to 128 clients, a four port Gigabit switch, RS-232, digital and analog I/O and multi-constellation GNSS. It carries a 3 year limited warranty.
Key Features
- LTE Advanced, 2 SIM
- 3x3 Wi-Fi 5, up to 128 clients
- 4 x GbE, RS-232, Micro-USB, I/O
- GPS, GLONASS, Galileo, BeiDou
- VRRP, VPN, RADIUS, TACACS+
- 3 year limited warranty listed
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: MP70
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Analog input, Digital input/output, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, PPPoE, TCP/IP, UDP/IP
Remote Management: CLI, SNMP, SSH, Telnet
Routing Protocol: VRRP
Authentication Method: RADIUS, TACACS+
Encryption: WPA2-Enterprise
Modem Transmission Data Rate: 300 MBps
Capacity: Maximum VPN sessions: 5, Wireless clients: 128
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: LTE, LTE Advanced
Key Features: USB port, VPN support
Features: 3T3R MIMO technology, Access Point operational mode, Dead Peer Detection (DPD), DHCP server, DMZ port, Firmware upgradable, LDAP support, MAC address filtering, NAT support, Port forwarding
Connectivity
Interface Provided: Antenna: 3 x SMA, Antenna: 3 x Wi-Fi - RP-SMA, LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x 9 pin D-Sub (DB-9), USB 2.0: 1 x 5 pin Micro-USB Type B
Expansion Slots: 2 SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Dimensions and Weight
Height: 1.8 inch
Width: 7.5 inch
Depth: 4.1 inch
Weight: 26.81 ounce
Certifications and Listing
Compliant Standards: E Mark, GCF, IC, IP64, MIL-STD 810G, PTCRB, R&TTE, REACH, RoHS 2, UL 60950, WEEE
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
