Product Information

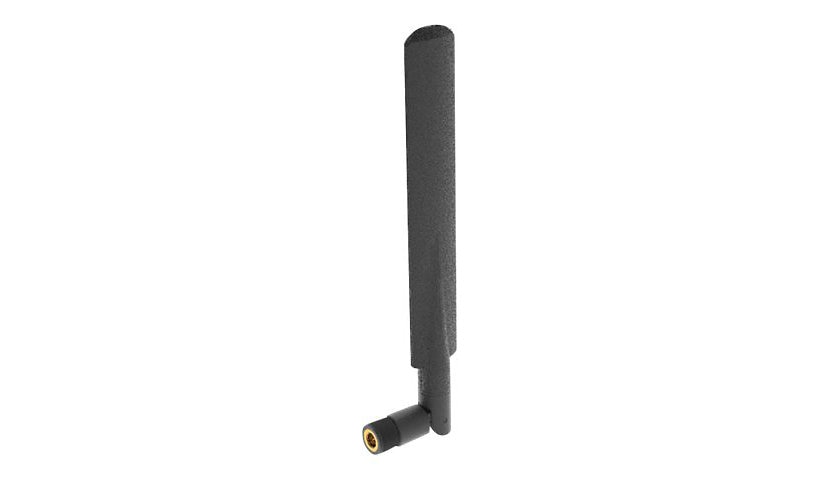

This Sierra Wireless AirLink paddle style cellular antenna needs no ground plane and gives 2 dBi omni coverage, covering 698 to 960, 1710 to 2170 and 2396 to 2700 MHz. It has an SMA plug, a 6.4 in ABS body and a -40 to 176 °F range.
Key Features
- 2G / 3G / 4G cellular
- 698 to 2700 MHz bands
- 2 dBi omni
- SMA plug
- About 6.4 in long
- -40 to 176 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: Antenna: Paddle Cellular
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi
Antenna Compatibility: 2G, 3G, 4G
Frequency Range: 1.71 - 2.17 GHz, 2.396 - 2.7 GHz, 698 - 960 MHz
Signaling Type: Cellular
Directivity: Omni-directional
Features: 0-90° pivot, Rugged, Vertical polarisation
Connectivity
Connector Provided: SMA plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Ground-plane
Voltage Standing Wave Ratio (VSWR): 2.5:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Width: 0.9 inch
Length: 6.4 inch
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
