Product Information

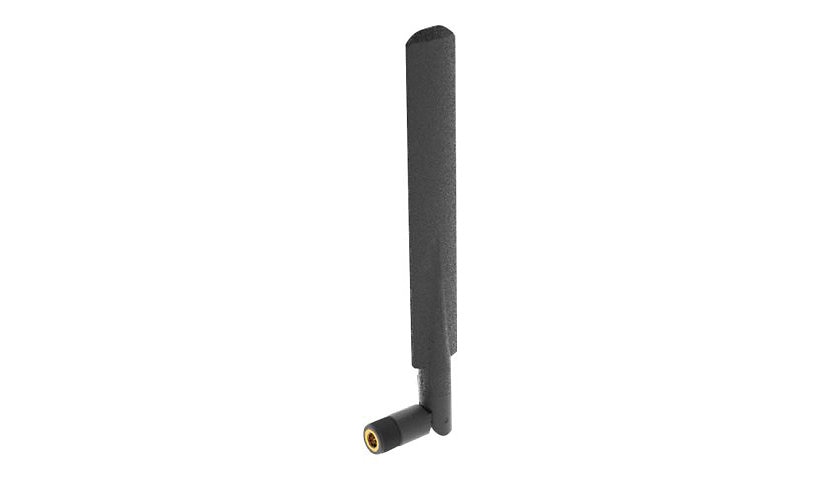

The Sierra Wireless AirLink paddle Wi-Fi antenna is a ground plane independent dual band antenna for 2.4 and 5 GHz, with 2 and 4 dBi gain. It has an articulating RP-SMA plug, a rugged ABS body about 6.4 in long and a -22 to 158 °F range.
Key Features
- Dual band 2.4 / 5 GHz
- 2 dBi / 4 dBi gain
- Articulating RP-SMA plug
- Ground plane independent
- About 6.4 in long
- -22 to 158 °F
Product Information
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: Antenna: Paddle Wi-Fi
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi (for 2.4 GHz), 4 dBi (for 5 GHz)
Antenna Compatibility: Wi-Fi
Frequency Range: 2.396 - 2.485 GHz, 4.9 - 6.0 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Connectivity
Connector Provided: 1 x RP-SMA plug
Technical Information
Impedance: 50 ohm
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 6.4 inch
Width: 0.9 inch
Depth: 0.3 inch
Warranty
Service Activation: No
