Product Information

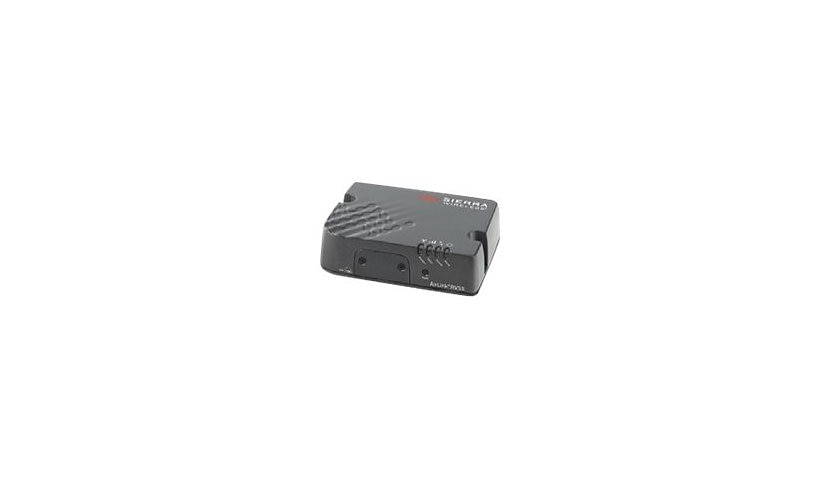

The Sierra Wireless AirLink RV55 is a rugged, compact LTE Advanced Pro router for remote assets, infrastructure and vehicle fleets, including SCADA and metering. This TAA compliant model adds dual band Wi-Fi 5 Wave 2, FIPS 140-2 encryption, serial and I/O ports and a 7 to 36 V DC input. It is listed for AT&T and Verizon Wireless and carries a 3 year limited warranty.
Key Features
- LTE Advanced Pro, up to 600 Mbps
- Wi-Fi 5 Wave 2 dual band
- 1 x GbE LAN, DB-9 serial, I/O, Micro USB
- FIPS 140-2, IPsec, GRE, VRRP
- 7 to 36 V DC, GPS / GLONASS
- TAA compliant, 3 year limited warranty
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: RV55
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Service Provider: AT&T, Verizon Wireless
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, IPSec, IPv6, PPPoE, TCP/IP, UDP/IP
Remote Management: SNMP, SSH, Telnet
Routing Protocol: GRE, Policy-based routing (PBR), Static IP routing, VRRP
Authentication Method: LDAP, Radio Service Set ID (SSID), RADIUS, TACACS+
Encryption: FIPS 140-2, WPA2-Enterprise
Modem Transmission Data Rate: 600 MBps
Capacity: Concurrent VPN tunnels: 5
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: LTE Advanced Pro, TDD LTE
Key Features: USB port, VPN support
Features: Dead Peer Detection (DPD), DHCP server, GPS/GLONASS support, IPv6 support, LDAP support, MAC address filtering, NAT support, Port forwarding, RADIUS support, VLAN support
Connectivity
Interface Provided: Antenna: 2 x RP-SMA, Antenna: 3 x SMA, Input / output, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x 9 pin D-Sub (DB-9), USB 2.0: 1 x 5 pin Micro-USB Type B
Power
Device Type: External power adapter
Required Voltage: DC 7 - 36 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 95%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: GPS / GLONASS
Dimensions and Weight
Height: 1.3 inch
Width: 4.7 inch
Depth: 3.3 inch
Weight: 11.29 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards: ANATEL, E Mark, EN 50155, FCC, FIPS 140-2, GCF, IC, IECEE CB, IFT, IP64, ISO 7637-2, MIL-STD 810G, PTCRB, RCM, REACH, RoHS, SAE J1455, UL 60950, WEEE
Compliant Standards: IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
