Product Information

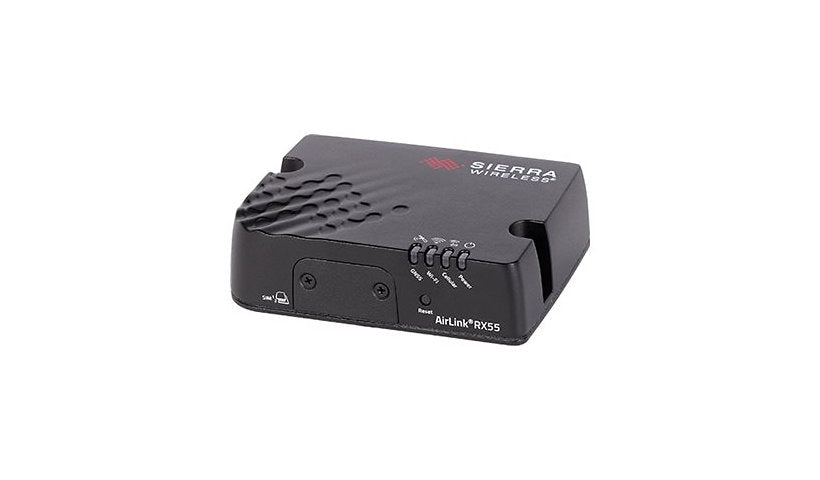

The Sierra Wireless AirLink RX55 is a compact, rugged LTE Advanced router built for industrial IoT, drawing little power at idle, and an IP64 rating. It offers a Gigabit Ethernet port, RS-232 serial, a GNSS antenna input and WPA3 support, and is FirstNet ready. It runs AirLink OS with AirLink Complete per the quick specs.
Key Features
- LTE Advanced and HSPA+, up to 300 Mbps
- 1 x GbE RJ-45, RS-232 DB-9, Micro USB
- IP64 rated, compact rugged design
- IPsec VPN, 10 tunnels, AES-256, RADIUS
- FirstNet ready, QoS, policy based routing
- 2 x Mini SIM, 200 MB flash
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: RX55
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv4, IPv6
Routing Protocol: Policy-based routing (PBR), Static IP routing
Authentication Method: RADIUS
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2, SHA-256, SHA-384, SHA-512, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 300 MBps
Capacity: Concurrent VPN tunnels: 10
Cellular Data Connectivity Technology: HSPA+, LTE Advanced
Key Features: Firewall, VPN support
Features: Dead Peer Detection (DPD), DHCP server, DMZ support, Firmware upgradable, FirstNet ready, LAN segmentation, NAT support, Port forwarding, Quality of Service (QoS), Reconfigurable MTU size
Connectivity
Interface Provided: Antenna: 1 x SMA - GNSS antenna, Antenna: 2 x SMA, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), USB 2.0: 1 x 5 pin Micro-USB Type B
Expansion Slots: 2 Mini-SIM
Memory and Processor
RAM Installed: 50 megabyte
Flash Memory Installed: 200 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 95% RH
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1.3 inch
Width: 4.7 inch
Depth: 3.3 inch
Weight: 11.29 ounce
Certifications and Listing
Compliant Standards #2: CB Scheme, Class 1 Div 2 (C1D2), CP65, E Mark, FCC, FIPS 140-2 Level 1, IC, IP64, ISO 7637-2, MIL-STD 810G, PTCRB, REACH, RoHS 2, SAE J1455, WEEE
Compliant Standards: IEEE 802.1x
Compliant Standards: CB Scheme, Class 1 Div 2 (C1D2), CP65, E Mark, FCC, FIPS 140-2 Level 1, IC, IP64, ISO 7637-2, MIL-STD 810G, PTCRB, REACH, RoHS 2, SAE J1455, WEEE
Warranty
Service Activation: No
